Working Environment And Regulatory Requirements
It is important to think about the particular operating conditions and relevant requirements when choosing materials for LPDC flange components. The material's performance and conformity to industry standards are greatly affected by these aspects.
Environmental Factors
Components' durability, efficiency, and dependability are all affected by the working conditions, thus choosing the right materials is essential. Before selecting materials for a product, engineers must do a comprehensive evaluation of the operating circumstances to ensure they can withstand the product's expected lifetime. Materials can expand, contract, or lose strength depending on the operational temperature range; degradation can occur from exposure to corrosive substances like chemicals or saltwater; specific mechanical strength is required by internal or external pressure; and wear can be caused by abrasive materials or frequent friction. As an example, low-pressure casting flange parts made of materials like stainless steel or aluminum-bronze alloys are better able to withstand the severe environmental attacks that carbon steel would experience in marine applications, so ensuring that the structural integrity is preserved.
Regulatory Compliance
Material selection must adhere to industry-specific norms and regulations, especially for components used in essential applications like flanges. Parts' legal acceptability and marketability across areas, as well as their operational safety and dependability, are guaranteed by compliance. One of the most important standards in this field is ASME B16.5, which details the exact measurements, materials, and pressure-temperature ratings that flanged fittings and pipe flanges must meet. With its rigorous material requirements for handling high pressures and aggressive conditions, API 6A is the gold standard for wellhead and Christmas tree equipment in the oil and gas industry. Additionally, for sour service applications, NACE MR0175 (or ISO 15156) is essential since it specifies how to choose materials that won't break under the stress of sulfide in settings where hydrogen sulfide is present. Design and manufacture must adhere to these criteria for the product to be eligible for sale on a worldwide scale and for consumers to have faith in its quality and safety.
Common Materials And Their Applicable Scenarios
A wide variety of materials, each with its own set of advantages and disadvantages, may be used to make low-pressure casting flange components. The greatest way to understand materials is to look at the many ways they are used:
Aluminum Alloys
Aluminium alloys from the 3xx and 4xx family, which are low-pressure die cast, are typical for flanged components. This is due to the fact that these alloys have excellent castability, allowing for the creation of intricate geometries with remarkable structural strength. Since reducing weight without sacrificing mechanical performance is a primary goal in aircraft and automobile design, its naturally low weight is an essential component in these industries. The exceptional corrosion resistance of these metals further extends the components' lifespan under a wide range of working conditions. When looking for an alloy with a high strength-to-weight ratio and a reputation for long life, go no further than A356 (AlSi7Mg). Pump housings and valve bodies, on the other hand, should be made of A413 (AlSi12), which has remarkable pressure tightness properties. These alloys are crucial in the marine and industrial sectors, which are notoriously tough.
Copper Alloys
Low pressure casting flange parts components that need outstanding thermal and electrical conductivity, among other desirable features, are best made from copper alloys. C83600, or lead tin bronze, is an excellent choice for marine hardware, valves, and pump components made by low-pressure die casting because of its exceptional corrosion resistance, especially in severe saltwater conditions. Its machinability and excellent wear resistance further increase its usefulness. Brass, specifically C85700 (leaded yellow brass), is a popular material for plumbing fixtures and electrical components because it is easy to work with, doesn't corrode in freshwater, and can be cast in a variety of shapes and sizes. This makes it possible to make complex low-pressure flange parts that are both aesthetically pleasing and functionally reliable.
Zinc Alloys
Zinc alloys, such as ZA-8 and ZA-12, provide an appealing blend of strength, longevity, and affordability, making them an ideal material for LPDC flange components. Components that experience regular usage or friction might benefit from these alloys' high hardness and wear resistance. A major advantage is that they can make items with great surface finishes and great dimensional stability straight out of the mold, which means that extra machining isn't always necessary. Because of this, they are ideal for many uses where both form and function are paramount, such as in electrical enclosures, strong hardware fittings for furniture and construction, and automotive components like brackets and fittings.
Cast Iron
Cast iron is used for flange components in difficult situations where its particular features are important. Low-pressure die casting is not as common as non-ferrous alloys, but it is still an option. Gray Iron, in particular Grade GG25, is highly prized for its wear resistance and vibration dampening ability, two qualities that make it an ideal material for use in automobile braking components and industrial bases. Parts that carry pressure, such as hydraulic manifolds or valve bodies, are often required to be made of Ductile Iron (e.g., GGG40), because to its exceptional toughness, ductility, and strength. Component weight is less important than structural integrity, durability, and performance under high-stress circumstances, which is why these materials are usually used for heavy-duty industrial applications like big pumps or compressors.
Key process factors influencing material selection
The low-pressure casting process itself imposes certain requirements on material selection. Consider these factors when choosing materials for LPDC flange parts:
Fluidity
To minimize flaws like cold shuts and misruns, Low-Pressure Die Casting (LPDC) uses materials with great fluidity to fill intricate mold holes uniformly and thoroughly. Aluminum alloys with a small microstructure and low viscosity, such as A356 and A413, become very fluid at high temperatures. Improving casting integrity and surface smoothness, this function replicates intricate geometries in flange designs with pinpoint accuracy. Consequently, selecting high-fluidity materials has a direct bearing on production productivity and component reliability in LPDC applications.
Solidification Characteristics
The behavior of a material during solidification has a major impact on casting quality, especially when it comes to reducing flaws. Many aluminum alloys and other materials with a small solidification range undergo a quick transformation from liquid to solid, which lessens the likelihood of shrinkage porosity and hot ripping. Flange components benefit from improved mechanical qualities due to a denser and more homogenous microstructure, which is achieved by controlled solidification. By giving these materials first priority, manufacturers may increase their yield rates and guarantee that the cast components will work consistently.
Thermal Properties
Important in low-pressure die casting (LPDC) are thermal conductivity and the coefficient of thermal expansion, which regulate heat dissipation and dimensional stability during solidification. Quick cooling is made possible by aluminum alloys, which have a high heat conductivity. This leads to improved grain structures and shorter cycle times in the low pressure casting flange parts component. As a consequence, the mechanical strength of the flange components increases and the residual stress decreases. By enhancing thermal properties, which aid in maintaining dimensional accuracy and removing flaws like warping or cracking from the low pressure casting flange product, overall process efficiency is enhanced.
Machinability
Accomplishing tight tolerances sometimes necessitates machining processes performed after casting, including drilling or milling. Improved cutting quality, less tool wear, and smoother surfaces are all results of using materials with superior machinability, such as some aluminum alloys and brass. Reduced manufacturing costs, shorter lead times, and simplified secondary processing are the results. Complex flange components requiring precise dimensions and excellent finishing benefit greatly from materials that are easy to machine.
Cost-effectiveness
Production economics places equal emphasis on material performance and cost factors. Castability, strength, and corrosion resistance are just a few of the qualities that aluminum alloys provide, and they're all reasonably priced. Their recyclability and extensive availability add to the environmental and financial advantages. A cost-effective solution that does not sacrifice the quality of LPDC flange components may be achieved by analyzing both the initial material expenditures and the long-term operating efficiency.
Low Pressure Casting Flange Part Supplier: Rongbao Enterprise
Rongbao Enterprise is a dependable and knowledgeable producer of low pressure casting flange parts. Rongbao Enterprise provides individualized solutions that are designed to meet your unique needs, with an emphasis on precision processing and aluminum alloy casting.

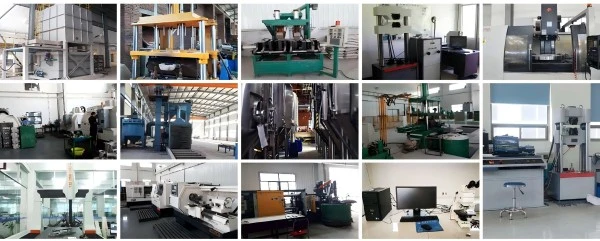

They are able to produce flange parts of the finest quality because to their knowledge of low-pressure casting processes and their cutting-edge CNC machining skills. The three certifications that Rongbao Enterprise has received—ISO 9001:2015, ISO14001, and ISO45001—attest to its dedication to environmental sustainability and innovation.
For inquiries about low pressure casting flange parts or to discuss your specific needs, reach out to Rongbao Enterprise at steve.zhou@263.net or zhouyi@rongbaocasting.com. With a production capacity of 5000 pieces and the ability to handle customized specifications, Rongbao Enterprise is well-equipped to meet your LPDC flange part requirements, whether you need parts made from ZL101 aluminum alloy or other materials suitable for your application.
