Low Pressure Casting Flange Parts

Low Pressure Casting Flange Parts

Shaanxi Rongbao Machinery Electronics Co., LTD. delivers precision-engineered Low Pressure Casting Flange Parts manufactured with advanced LPDC technology since 2003. Our flange components are produced using ZL101 aluminum alloy through controlled low-pressure die casting, achieving exceptional density and mechanical strength. Each flange weighs 1.1kg and undergoes CNC machining and shot blasting surface treatment. With 14 utility model patents and recognition as a National High-Tech Enterprise, we maintain rigorous quality standards across every production stage. Our production capacity reaches 5,000 pieces per batch, supporting medium-volume manufacturing runs. We export approximately 70% of our output to North America, Europe, and Japan, demonstrating proven reliability in global markets. ISO 9001, ISO 14001, and ISO 45001 certifications ensure consistent quality management throughout your order fulfillment.

What Makes Our Low Pressure Casting Flange Parts Superior?

Our LPDC process applies controlled gas pressure between 0.7–1.5 bar to push molten ZL101 aluminum alloy steadily into precision molds. This bottom-filling approach allows air to discharge naturally during cavity filling.

The result? Flange components with minimal porosity and superior internal cleanliness. Your applications benefit from enhanced structural integrity and extended service life.

Unlike high-pressure methods that introduce turbulence, our low-pressure technique maintains laminar flow. This controlled metal movement reduces oxidation inclusions and cold shuts significantly.

We employ centralized melting systems that eliminate excess gas and impurities before casting begins. This proactive approach suppresses defects at the source rather than addressing them downstream.

Technical Specifications

Our Integrated Manufacturing Process

Mold Development: We manufacture custom molds within 15–25 days based on your drawings or 3D models. Our patented core preparation methods support complex geometries.

Precision Casting: Molten aluminum fills molds from the bottom upward under stable pressure. This directional solidification minimizes internal voids and enhances mechanical properties.

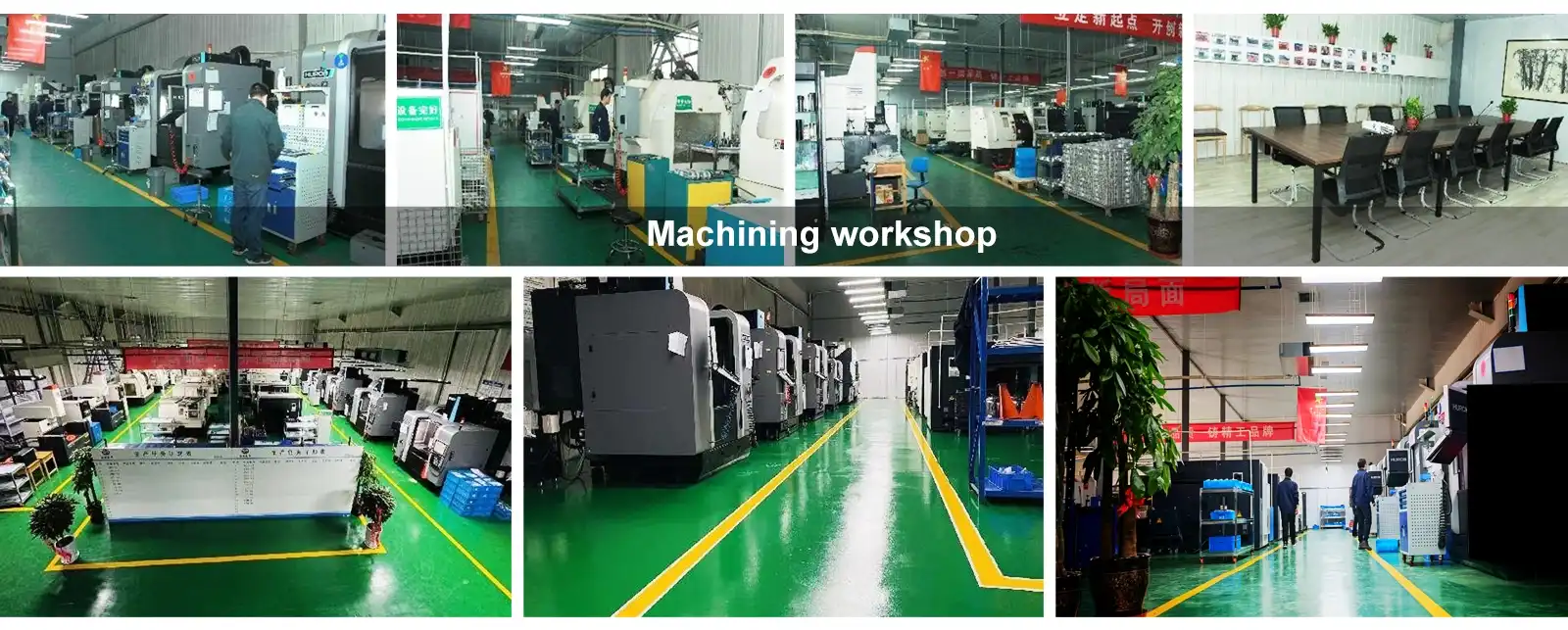

CNC Machining: Multi-axis machining centers deliver tight tolerances on critical dimensions. Your flange interfaces mate perfectly with adjoining components.

Surface Treatment: Shot blasting creates uniform surface texture while removing oxidation layers. This preparation improves coating adhesion for subsequent finishing if required.

Quality Verification: Dimensional inspection and material testing confirm conformance before packaging. We maintain traceability records throughout production.

Why Choose LPDC for Your Flange Components?

Low-pressure die casting suits Low Pressure Casting Flange Parts production where mechanical strength matters more than rapid cycling. The process creates high-density structures resistant to pressure fluctuations in piping systems.

Uniform wall thickness in LPDC design prevents shrinkage cavities. Our engineering team optimizes draft angles between 0.5° to 3° for clean mold release without surface damage.

Strategic cooling channel placement ensures directional solidification from thin sections toward feeding gates. This thermal management reduces hot tear risks in complex flange geometries.

We design runners as short and straight as possible to maintain metal temperature during cavity filling. Smooth flow paths eliminate turbulence that introduces oxide films.

One-Stop Component Supply

You receive finished flanges for assembly. Our "one-stop-shop" processes combine all the manufacturing steps under one roof.

This cuts out the coordinating delays of several sub-contractors. Supply chain complexity lessens, quality consistency increases.

We also have multiple process capabilities such as gravity cast, sand cast and high pressure die cast if the project requirements change. You can achieve production flexibility without changing suppliers.

Customization for Global Equipment Manufacturers

We are capable of OEM & ODM project according to your technical specification. Our technical staff will take your specifications and convert them into manufacturable designs if you submit CAD files, or performance criteria.

Prototype iterations verify form, fit and function prior to tooling expenditure. Design changes for production restrictions while maintaining your functional objective.

Batch production is available from our standard 100 piece MOQ to 10,000 for established products. Our production schedules coincide with your inventory planning and seasonal demand patterns.

Quality Systems You Can Trust

Our quality control from order receipt to final inspection is based on ISO 9001 certification. Document controls are used to maintain manufacturing uniformity from run to run.

We operate our environmental responsibilities according to ISO 14001 for waste and energy efficiency. Our operations are designed to support your supply chain sustainability goals.

Our team members are protected by ISO 45001 occupational safety regulations. Safe operations mean stable production output and reliable delivery performance.

We passed ABB's rigorous SSBM audit with flying colours which proves we are capable of meeting the toughest demands of international suppliers. The same rigorous attention to your quality demands.

Applications Across Industries

Fluid Handling Systems: Pipe connections in water treatment, HVAC, and process equipment benefit from our flange components' pressure resistance.

Industrial Equipment: Machinery manufacturers integrate our flanges in hydraulic systems, pneumatic assemblies, and mechanical power transmission applications.

Transportation Infrastructure: Rail systems and commercial vehicle subsystems utilize aluminum flanges for weight reduction without compromising structural performance.

Energy Sector: Renewable energy equipment and traditional power generation systems require reliable joining components that withstand thermal cycling.

FAQ

Q: What wall thickness uniformity can you achieve in flange casting?

A: Our LPDC process maintains wall thickness variations within ±0.3mm for most flange geometries. Uniform sections promote even solidification and consistent mechanical properties throughout the component.

Q: How does your lead time break down for custom flange orders?

A: Mold manufacturing requires 15–25 days depending on complexity. Once tooling approves, batch production completes within 7–20 days. Total lead time averages 20–30 working days from order confirmation.

Q: Can you accommodate special material certifications?

A: Yes, we provide material test reports confirming ZL101 alloy composition. For applications requiring third-party certification or specific market compliance documentation, please specify requirements during quotation.

Q: What design files do you accept for custom projects?

A: We work with STEP, IGES, STL, and native CAD formats including SolidWorks and AutoCAD. 2D drawings with complete dimensioning also serve as manufacturing documentation.

Q: Do you support surface treatments beyond shot blasting?

A: Our facility provides anodizing, powder coating, and painting services. For specialized finishes, we coordinate with qualified partners while maintaining quality oversight and delivery responsibility.

Q: How do you prevent oxidation defects in the products?

A: Sealed crucible melting prevents atmospheric contamination. Bottom-filling and controlled pressure minimize turbulence. Ceramic riser tubes resist aluminum reaction. These combined measures significantly reduce oxide inclusion risks.

Contact Us for Your Flange Component Requirements

Ready to discuss your Low Pressure Casting Flange Parts project? Contact steve.zhou@263.net to start your customized component solution today.
