What is high pressure die casting?

High pressure die casting is a sophisticated metal casting process that has changed manufacturing across various industries, allowing for the production of complex, high-quality metal parts with excellent dimensional accuracy and surface finish.

A Metal Casting Process

High pressure die casting is a manufacturing process that involves injecting molten metal into a mold cavity under high pressure. This method is particularly well-suited for producing large quantities of complex, dimensionally accurate metal parts with smooth surfaces. The process begins with melting the metal, typically an aluminum alloy, zinc, magnesium, or copper alloy, in a furnace.

Once the metal reaches the appropriate temperature and composition, it is transferred to a shot sleeve. A hydraulic or mechanical piston then rapidly injects the molten metal into a steel die at extremely high pressures, often exceeding 10,000 psi (69 MPa). The high pressure ensures that the metal fills even the finest details of the mold cavity, resulting in parts with excellent surface finish and dimensional accuracy.

The die, which is typically made of tool steel, is designed to withstand the high temperatures and pressures involved in the process. It consists of two halves: a fixed half and a movable half. The movable half is opened to allow for part ejection after solidification and then closed for the next cycle.

After injection, the metal solidifies rapidly due to the relatively cold temperature of the die. This quick solidification contributes to the fine grain structure and excellent mechanical properties of the finished parts. Once solidified, the die opens, and the part is ejected using pins, compressed air, or a combination of both.

High pressure die casting offers several advantages over other casting methods, including:

• High production rates
• Excellent dimensional accuracy and surface finish
• Ability to produce thin-walled parts
• Minimal post-casting machining requirements
• Consistent part quality

Key Characteristics of High Pressure Die Casting

High pressure die casting is characterized by several unique features that set it apart from other metal casting processes:

1. High Injection Pressure: The defining feature of this process is the high pressure used to inject the molten metal into the die cavity. This pressure can range from 5,000 to 30,000 psi, depending on the specific application and material being cast.
2. Rapid Cycle Times: High pressure die casting is known for its fast production rates. Cycle times can be as short as a few seconds for small parts, making it ideal for high-volume production.
3. Excellent Surface Finish: The high injection pressure and rapid solidification result in parts with smooth surfaces that often require minimal post-casting finishing.
4. Thin Wall Capability: This process can produce parts with wall thicknesses as thin as 0.5 mm, which is difficult to achieve with other casting methods.
5. Complex Geometry: High-pressure die casting can produce parts with intricate details and complex geometries, including internal passages and undercuts.
6. Dimensional Accuracy: Parts produced through this process typically have tight tolerances, often within ±0.1 mm for smaller dimensions.
7. Material Versatility: While commonly used with aluminum alloys, high pressure die casting can also be used with zinc, magnesium, copper, and even some ferrous alloys.
8. Grain Structure: The rapid solidification under high pressure results in a fine-grained structure, contributing to improved mechanical properties.

These characteristics make high pressure die casting an attractive option for manufacturers seeking to produce high-quality, complex metal parts in large volumes. However, it's important to note that the process also has some limitations, such as potential porosity issues and limitations on part size due to machine capacity constraints.

Applications of High Pressure Die Casting

The unique capabilities of high pressure die casting make it a valuable manufacturing process across a wide range of industries. Here are some of the key applications:

1. Automotive Industry: High-pressure die casting is extensively used in the automotive sector for producing engine blocks, transmission cases, cylinder heads, and various structural components. The process's ability to produce lightweight yet strong parts is particularly valuable as automakers strive to improve fuel efficiency.

2. Aerospace Industry: In aerospace applications, high pressure die casting is used to produce components that require high strength-to-weight ratios, such as aircraft frame components and engine parts.

3. Electronics Industry: The process is ideal for producing housings for electronic devices, heat sinks, and other components that require good thermal management properties.

4. Medical Equipment: High-pressure die casting is used to manufacture various medical device components, surgical instruments, and equipment housings where precision and cleanliness are critical.

5. Consumer Goods: Many everyday items, from kitchen appliances to power tools, contain components produced through high-pressure die casting.

6. Industrial Machinery: The process is used to manufacture components for pumps, valves, and other industrial equipment that require complex geometries and high strength.

7. Telecommunications: High pressure die casting is used to produce components for cell phone towers, satellite dishes, and other telecommunications equipment.

8. Energy Sector: The process is employed in the production of components for wind turbines, solar panel frames, and other renewable energy technologies.

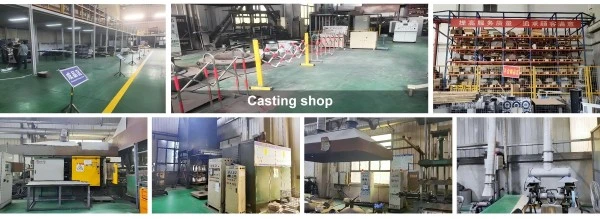

At Rongbao Enterprise, we specialize in high pressure die casting and other advanced manufacturing processes to deliver high-quality aluminum alloy components for these diverse industries. Founded in 2003, we have established ourselves as a leader in precision manufacturing, offering integrated component supply solutions for equipment manufacturers.

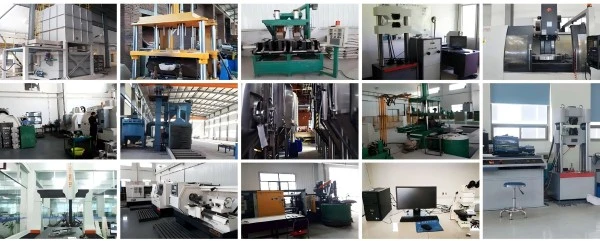

Our state-of-the-art facilities and commitment to quality are evidenced by our ISO 9001:2016 Quality Management System certification, ISO 14001 Environmental Management System certification, and ISO 45001 Occupational Health and Safety Management System certification. We pride ourselves on our ability to meet the exacting standards of our clients across various industries, delivering parts that combine reasonable cost control, stable and timely delivery, controllable product quality, and excellent after-sales service.

High pressure die casting is a versatile and efficient manufacturing process that continues to play a crucial role in modern industry. Its ability to produce complex, high-quality parts at high volumes makes it an invaluable tool for manufacturers across a wide range of sectors. As technology continues to advance, we can expect to see further innovations in high-pressure casting, expanding its capabilities and applications even further.

For more information about our high pressure die casting services and how we can support your manufacturing needs, please don't hesitate to contact us at steve.zhou@263.net / or zhouyi@rongbaocasting.com. Our team of experts is ready to help you leverage the power of casting for your next project.

References

1. Andresen, B. (2005). Die Casting Engineering: A Hydraulic, Thermal, and Mechanical Process. CRC Press.
2. Vinarcik, E. J. (2003). High Integrity Die Casting Processes. John Wiley & Sons.
3. Street, A. C. (2003). The Diecasting Book. Portcullis Press.
4. Kaye, A., & Street, A. (2016). Die Casting Metallurgy. Butterworth-Heinemann.
5. Brevick, J. R., & Mount-Campbell, C. A. (1991). Die Casting Die Design. North American Die Casting Association.
