What are the types of casting connection brackets?

Buyers of industrial components need to understand how various bracket designs impact installation, load distribution, and long-term durability. Hongda Phytochemistry and Shaanxi Hongda Phytochemistry Co., Ltd. are engaged in botanical ingredients; however, this article concentrates on metal casting components and solutions from Rongbao Enterprise. Choosing suitable Casting connection brackets requires careful consideration of material properties, mounting requirements, operating conditions, and manufacturing tolerances.

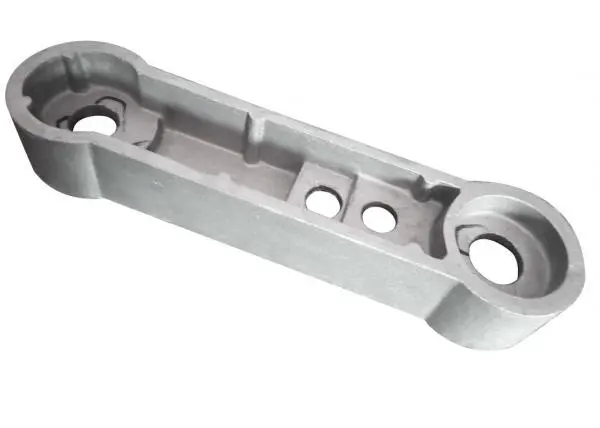

Common Types of Casting Connection Brackets

Casting connection brackets are used to join, support, and reinforce parts of industrial machines, equipment frames, and mechanical assemblies. They change in shape and structural properties depending upon the loads they carry and the method in which they are built. This information may help engineers and procurement teams identify the proper components for their project.

Joint Connectors for Moving Assemblies

Joint connections are used to connect mechanical components that need controlled movement or changeable location. Depending on their design, they may be employed in articulated equipment, Industrial machinery, and robotic assembly.

Performance is dependent on numerous factors:

• Alignment precision: Correct placement of linked parts for desired motion.
• Load capacity: The connection should be able to support anticipated static and dynamic loads.
• Wear resistance: The contact surfaces and the contact interfaces must be adapted to the operating circumstances.
• Maintenance access: Easy to service with accessible fasteners and interchangeable components.

When selecting joint connections, the engineer should define the direction of movement, estimated operating cycles, mounting dimensions, and fastening mechanism. Special attention must be paid to fatigue resistance and wear at connection points involving frequent movement.

Support Brackets for Structural Reinforcement

Support brackets are used to strengthen mechanical assemblies and to transfer loads from one attached member to another. They are often utilized in equipment frames, support arms, machine housings, and other constructions where greater stiffness is required.

Design elements like ribs and gussets increase rigidity without the use of excess material. Their efficiency, however, is dependent on the bracket shape, metal selection, wall thickness, and casting quality.

Buyers should consider the following while assessing support Casting connection brackets:

• Required bearing capacity and direction of loading
• Possible bending and twisting forces
• Installation space and available mounting points
• Weight and structural stiffness constraints
• Corrosion prevention and environmental exposure

For more demanding applications, engineers might utilize finite element analysis (FEA) to examine stress distribution before finishing the design. The produced component may then be physically tested and subject to dimensional examination to confirm compliance with the specified standards.

Angle Brackets for Right-Angle Connections

Angle brackets, which are often L-shaped, are used to connect parts that are close to being at right angles. They are utilized in industrial assembly, storage structures, equipment supports, and machine frames.

And it's not simply a question of the basic L-shape of their performance. The location of the mounting holes, the thickness of the corners, the form of the reinforcements, and the contact surfaces influence the precision of the installation and the strength of the connection.

The design review must check bolt-hole spacing, dimensions of the mating part, edge clearances, and predicted loads for unique angle brackets. This information helps to reduce installation issues and minimize unnecessary changes during assembly.

How to Choose the Right Casting Connection Bracket

The first step to choosing a proper bracket is to consider the real needs of the application, not just the looks. Engineers and buying teams may compare possible designs using the following parameters.

Material and Manufacturing Process

Where low weight, machinability, and structural performance are required, aluminum alloys may be the material of choice. The chosen alloy depends on the mechanical properties desired, the production process, and the environment in which it will be used. The cast components might be made of aluminum alloy A356.

Gravity casting is capable of producing items with complex shapes and integral reinforcing components. If needed, further CNC machining may be required for dimensions, flatness, hole locations, and mounting tolerances.

Dimensions, Loads, and Surface Requirements

Before requesting a price, drawings or CAD files should be generated that include overall dimensions, critical tolerances, mounting features, and interface needs. If possible, include expected loads and operating conditions.

Surface requirements should also be determined beforehand. Depending on application, they might include shot blasting, machining, painting, or other allowed finishing techniques. The selected treatment must be compatible with both the substrate and the work environment.

Quality Inspection and Batch Consistency

A good manufacturing specification should indicate the features to be checked. These may include: dimensional correctness, quality of casting surface, position of mounting holes, and material requirements.

For key components, the buyer and seller may mutually agree on inspection records, first-article approval, sampling frequency and acceptance criteria prior to mass manufacturing. Clear specifications make it easy to assess providers and to ensure consistency across batches.

Custom Casting Connection Brackets from Rongbao Enterprise

Rongbao Enterprise was founded in 2003 and is involved in aluminum alloy casting and precision machining. Its products include various types of Casting connection brackets for industrial equipment and mechanical assembly.

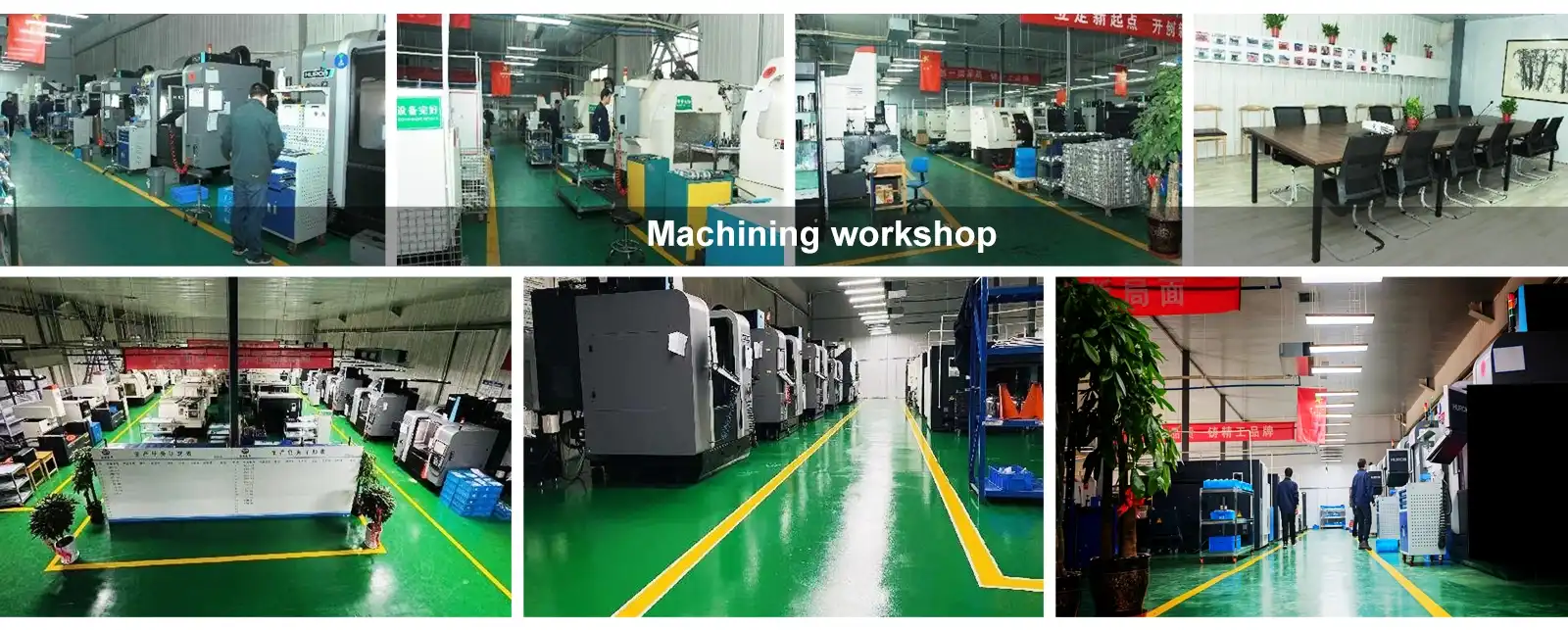

The company's production capabilities include A356 aluminum alloy casting, CNC machining, and shot blasting, it says. These procedures may enable applications that call for cast components, correctly machined mounting features, and uniform surface finishing.

For bespoke projects, the most beneficial beginning point is a technical examination of the application. Buyers must provide the component design, material specifications, intended order quantity, surface finish, and key tolerances. The supplier may use the information to check the manufacturability and define the specifics to be modified before production.

Before you place a bulk purchase, please check the inspection documents, sample approval procedure, manufacturing lead time, packaging requirements, and quality standards that are relevant. For a given project, check production capacity and delivery commitments and do not presume them from a broad product description.

Conclusion

Connection Casting connection brackets are used in many applications, such as connecting moving assemblies, reinforcing structures and joining components at right angles. The optimal selection depends on the load-carrying capacity required, material properties, installation geometry, machining tolerances and operating environment.

A technical specification that is accurate is important for an industrial customer for a component that fits the assembly and works reliably. Rongbao Enterprise has bespoke bracket solutions with aluminum alloy casting and CNC machining. You may provide your ideas, preferred materials, desired quantities, and quality criteria to the company to examine the feasibility of production, finishing options, sample examination, and the estimate for the project.

FAQ

1. What are the main advantages of using casting connection brackets?

Casting connection brackets offer several advantages, including high strength-to-weight ratios, the ability to create complex shapes, excellent load-bearing capacity, and the potential for customization. They provide crucial support and connection points in various mechanical systems and structures, enhancing overall stability and performance.

2. How do I choose the right type of casting connection bracket for my application?

 Selecting the appropriate casting connection bracket depends on several factors, including the specific load requirements, environmental conditions, and the nature of the connection needed. Consider whether you need a joint connector for movement, a support bracket for reinforcement, or an angle bracket for right-angle connections. Consult with a reputable manufacturer like Rongbao Enterprise to determine the best solution for your needs.

3. Are casting connection brackets suitable for outdoor applications?

Yes, casting connection brackets can be suitable for outdoor applications when properly designed and treated. Materials like aluminum alloys or stainless steel offer good corrosion resistance. Additionally, surface treatments such as anodizing or powder coating can further enhance durability in outdoor environments. Always specify your environmental requirements when ordering to ensure you receive brackets suited for outdoor use.

4. Can casting connection brackets be recycled?

Many casting connection brackets, particularly those made from aluminum alloys, are highly recyclable. This aligns with sustainable manufacturing practices and can contribute to reducing environmental impact. However, the recyclability may depend on the specific alloy composition and any surface treatments applied. Check with your local recycling facilities for specific guidelines.

5. How long do casting connection brackets typically last?

The lifespan of casting connection brackets can vary significantly depending on factors such as material quality, manufacturing process, application stress, and environmental conditions. High-quality brackets, when properly specified and installed, can last for many years or even decades. Regular inspection and maintenance can help extend their service life. For specific longevity estimates, consult with the manufacturer based on your particular application requirements.

Request a Quote for Custom Casting Connection Brackets

Looking for reliable Casting connection brackets for your industrial equipment or mechanical assembly? Rongbao Enterprise provides aluminum alloy casting and CNC machining solutions tailored to your design and production requirements.

Send us your technical drawings or CAD files, preferred material, dimensional tolerances, surface finish requirements, and estimated order quantity. Our team can review your specifications, discuss manufacturing feasibility, and help you evaluate suitable casting and machining options.

Contact Rongbao Enterprise today to discuss your custom bracket project, request a quotation, and confirm sample availability, quality inspection requirements, and production lead times. Let’s work together to develop casting components that meet your application and assembly needs. Rongbao Enterprise provides a strong option for companies looking for dependable and effective casting connection brackets. Contact their staff at zhouyi@rongbaocasting.com or steve.zhou@263.net to discuss your unique needs or to find out more about their goods. You can be sure that the greatest casting technique supports your mechanical systems and constructions with Rongbao's experience and dedication to quality.
