What are the different types of valve bodies?

The cast valve body serves as the core structural component of all valve assemblies, encapsulating internal trim parts including seats, discs and stems, and sustaining overall pressure integrity of industrial piping systems. Proper selection of valve body types is fundamental to the long-term operational reliability, safety and cost efficiency of fire suppression systems, pump units and industrial fluid control infrastructures.

Based on the manufacturing processes and the construction features, industrial valve bodies are classified into four major categories. These are cast valve bodies, forged valve bodies, welded valve bodies and fabricated steel valve bodies. Each variant is designed with distinct mechanical properties, structural flexibility and application limits to meet a variety of pressure conditions, structural requirements and industrial situations. Understanding these differences clearly enables procurement and engineering teams to choose the best valve bodies depending on pressure ratings, requirements for corrosion resistance and standards of system compatibility.

Core Features of Four Main Valve Body Types

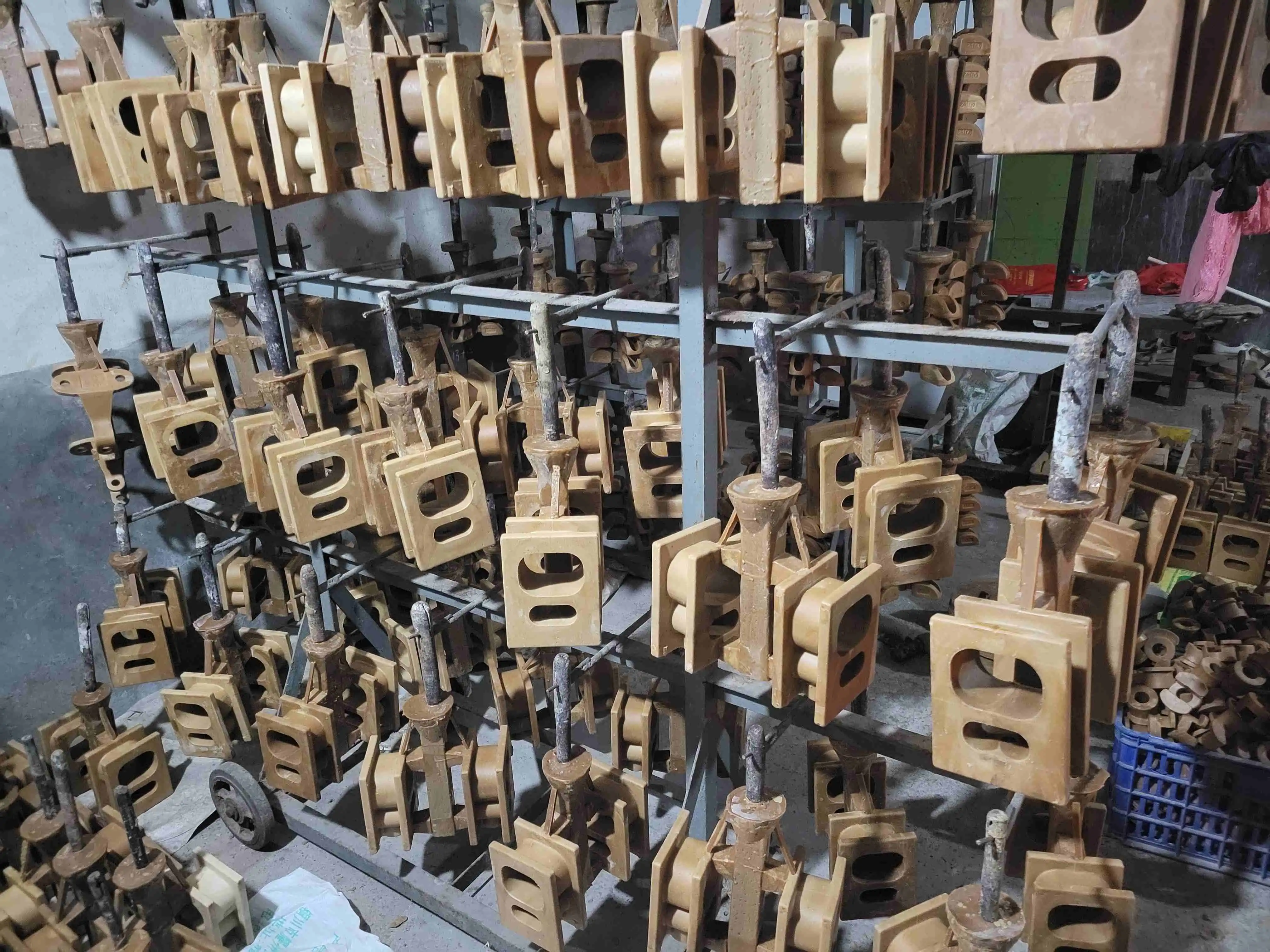

Valve Bodies – Cast Sand castings, gravity castings and die castings are used to produce cast valve body, which are good at producing complex internal flow geometries that are difficult and expensive to produce by mechanical machining. This production method is suitable for large-batch mass production, and can adapt to various materials such as carbon steel, stainless steel, ductile iron and A356 aluminum alloy. With tightly controlled process parameters, gravity casting provides a better surface quality and almost no internal porosity, ensuring stable performance in medium pressure industrial applications.

Valve bodies of forged construction are formed by thermomechanical treatment under continuous pressure. The forging process refines the internal grain structures and thus effectively removes inherent material defects. Forged valve bodies have higher tensile strength, better structural compactness and excellent fatigue resistance compared with cast counterparts, ideal for extreme working conditions involving ultrahigh pressure (above 2,500 PSI), frequent pressure fluctuations and thermal cycling vibration.

Fabricated by splicing and welding steel plates or standard pipe sections, welded valve bodies avoid the high cost and mold limitations of traditional casting processes. They are the preferred solution for large-diameter piping systems (DN600 and above) under low to medium pressure, where custom casting molds are economically unfeasible or structurally impractical.

Fabricated Steel Valve Bodies Fabricated steel valve bodies integrate precision machining and customized welding processes, supporting non-standard structural design and one-off prototype development. This type is highly adaptable to special industrial configurations and personalized engineering requirements, filling the gap between standardized mass-produced valve bodies and fully customized fluid control components.

In-Depth Analysis of Cast Valve Bodies by Valve Configuration

As the most widely adopted valve body type in industrial manufacturing, cast valve bodies support diversified valve structural designs and meet differentiated fluid control demands across scenarios:

Gate Valve Bodies: Featuring a full-bore unobstructed flow channel in the fully open state, cast gate valve bodies minimize fluid pressure drop. They are extensively applied for pipeline isolation in water supply networks and fire suppression main systems.

Globe Valve Bodies: Designed with an S-shaped internal flow path, globe valve bodies generate moderate flow resistance to achieve precise throttling and flow regulation, suitable for scenarios requiring accurate fluid control.

Ball Valve Bodies: Equipped with a spherical closing disc, cast ball valve bodies realize fast quarter-turn on-off operation. Benefiting from rapid actuation and ultra-low leakage rates, they are widely used in fire pump connection assemblies.

Butterfly Valve Bodies: Adopting a thin-profile compact structure, butterfly valve bodies reduce material consumption and installation space. They are the optimal choice for large-diameter industrial piping systems with cost-sensitive and space-limited requirements.

The high structural flexibility of casting processes enables manufacturers to produce multiple cast valve body specifications with unified production systems, effectively simplifying the supply chain and stabilizing product quality.

Industry Material Standards and Certification Specifications

Cast valve bodies for fire protection and industrial fluid control must comply with authoritative international material standards to ensure operational safety and regulatory compliance:

• Carbon Steel Castings: Governed by ASTM A216 standard, applicable for high-temperature industrial service conditions.

• Stainless Steel Castings: Compliant with ASTM A351 standard, covering austenitic stainless steel materials with excellent corrosion resistance.

• Aluminum Alloy Castings: A356 aluminum alloy (7% silicon, 0.3% magnesium) balances outstanding castability, structural strength and corrosion resistance, widely used in lightweight fire pump valve components.

• Cast Iron Components: Water-system cast iron valve bodies adhere to ISO 6208 and EN 1561 industry standards.

For regulated scenarios such as fire pump systems, all cast valve bodies must support complete material traceability and batch dimensional consistency to meet national certification requirements.

Performance Comparison: Cast vs. Forged vs. Welded Valve Bodies

Engineering specification selection requires comprehensive evaluation of working pressure, structural complexity, production cost and service environment:

Cast valve body dominate medium-pressure applications (below 1,500 PSI). Their mold-based forming process supports complex internal flow path optimization, reduces post-processing workload, and delivers significant cost advantages in batch production. Forged valve bodies, by contrast, are irreplaceable for high-pressure scenarios (above 2,500 PSI) and high-fatigue environments with frequent thermal cycling and vibration. The forging process eliminates internal material defects fundamentally, while cast products require strict process control and non-destructive testing to ensure internal soundness. However, forging is limited in structural complexity and incurs higher tooling costs for non-standard designs.

Welded valve bodies provide cost-effective solutions for large-diameter low-pressure pipelines, yet they are not applicable for precision fluid control components that demand high surface finish accuracy and strict dimensional tolerance. For fire pump conversion joints and key fluid passage components, gravity-cast A356 aluminum alloy valve bodies are the optimal choice, combining light weight, excellent corrosion resistance and high dimensional precision after CNC finishing.

Key Procurement Considerations for Cast Valve Bodies

Large-scale procurement of cast valve bodies requires comprehensive assessment of supplier comprehensive capabilities rather than mere unit price comparison:

Standardized Certification Qualification: Suppliers must hold ISO 9001:2015 (quality management), ISO 14001 (environmental management) and ISO 45001 (occupational health and safety) certifications to ensure standardized and stable production processes in regulated industries.

Full-Chain Manufacturing Capacity: Integrated suppliers with in-house mold development, gravity casting and CNC machining capabilities eliminate the coordination risks of multi-subcontractor cooperation, supporting OEM/ODM customized development and sample validation for new product models.

Stable Production and Delivery: Reliable suppliers feature standardized production capacity (up to 5,000 pieces per batch) and professional wooden box packaging solutions, effectively reducing transit damage and ensuring lead time stability. Standard bulk orders with existing molds take 3–5 weeks, while new mold development adds an additional 2–4 weeks.

Transparent Pricing System: Graded pricing for different order volumes and material grades enables procurement teams to accurately calculate total landed costs and optimize procurement budgets.

Installation, Maintenance and Inspection Guidelines

The service life of cast valve bodies depends on standardized installation and routine scientific maintenance. Pipeline misalignment during assembly causes uneven structural stress, accelerating fatigue damage at flanged and threaded connections. Installation must strictly follow manufacturer torque specifications to avoid joint deformation.

Shot blasting surface treatment is a standard process for cast valve bodies, which removes casting scale, improves surface flatness and enhances protective coating adhesion. For fire pump equipment, internal surfaces must be inspected for residual sand and oxide inclusions before assembly.

Daily maintenance includes regular visual inspection for surface cracks, wall thickness detection of high-stress areas and hydrostatic pressure testing matching system operating parameters. The U.S. market follows NFPA 25 standards for inspection frequency and acceptance criteria of fire protection equipment. Valve bodies with through-wall porosity or excessive dimensional deviation should be replaced directly, as post-repair failure risks and test costs far exceed replacement expenses.

FAQ

1. What are the core differences between cast and forged valve bodies?

Cast valve bodies are mold-formed for complex structural design and cost-effective batch production, suitable for medium-pressure working conditions. Forged valve bodies are pressure-formed with refined grain structures, featuring higher strength and fatigue resistance, ideal for ultra-high pressure (above 2,500 PSI) and high-vibration environments.

2. What are the standard lead times for bulk cast valve body orders?

Lead times depend on product complexity and mold availability. Standard gravity-cast products with existing tooling take 3–5 weeks for 500–5,000-piece batches; new mold development extends the cycle by 2–4 weeks.

3. Are cast valve bodies applicable for fire pump systems?

Yes. Gravity-cast A356 aluminum alloy valve bodies, processed via precision CNC machining and strict hydrostatic testing under ISO 9001:2015 standards, fully meet the dimensional accuracy and pressure integrity requirements of fire pump components, with complete material traceability documents to support official equipment certification.

4. What core certifications should qualified suppliers possess?

ISO 9001:2015 (quality management), ISO 14001 (environmental management) and ISO 45001 (occupational health and safety) are the basic mandatory certifications for industrial and fire protection supply scenarios.

Professional Cast Valve Body Supply: Rongbao Enterprise

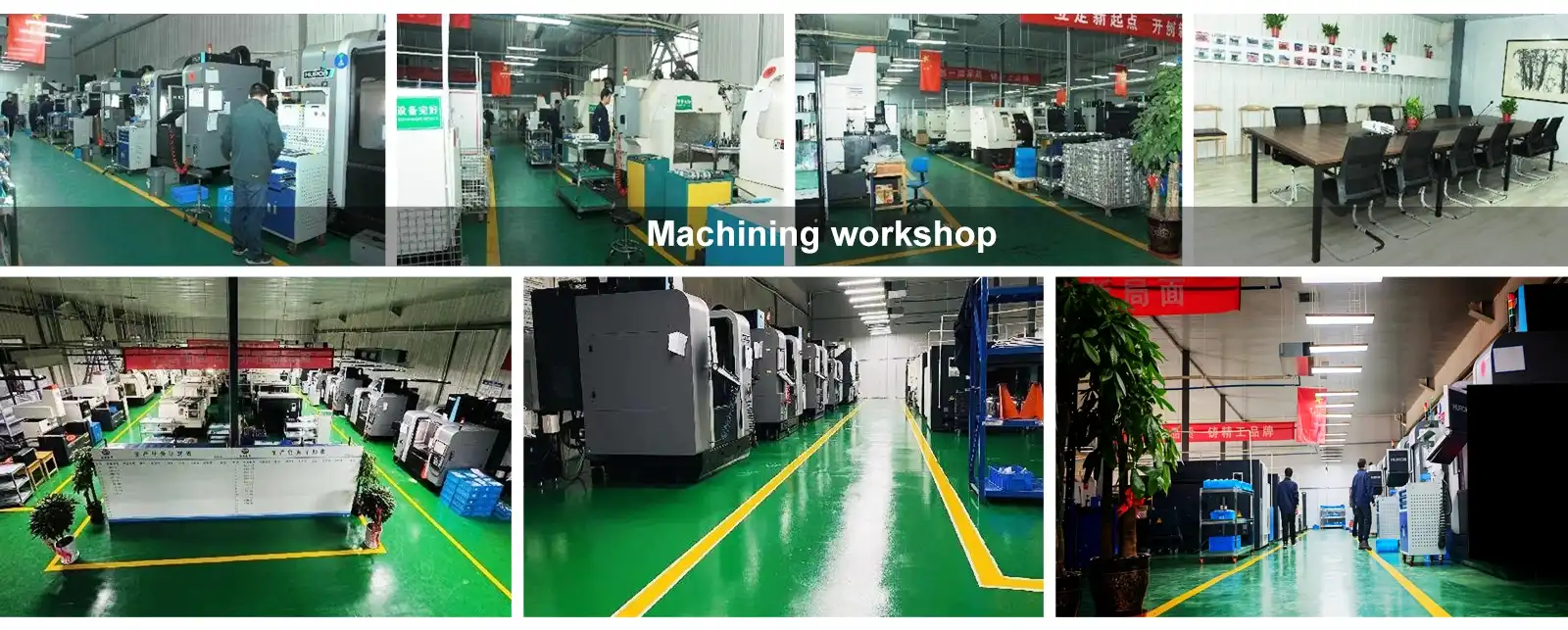

With over 20 years of global manufacturing experience, Rongbao Enterprise provides one-stop full-chain services including gravity casting, precision CNC machining and shot blasting surface treatment. All production processes comply with ISO 9001:2015, ISO 14001 and ISO 45001 international standards. Supporting OEM/ODM customized development, our factory achieves a stable production capacity of 5,000 pieces per batch, with traceable quality inspection documents for all products.

We deliver high-quality, cost-effective cast valve bodies for fire protection and industrial fluid control systems worldwide. For customized quotations and technical consultation, please contact us via steve.zhou@263.net or zhouyi@rongbaocasting.com, or visit rongbaocasting.com.

Conclusion

Each type of cast valve body has exclusive application advantages determined by manufacturing processes and mechanical properties. As the most versatile and cost-effective option, cast valve bodies perfectly adapt to complex flow channel designs and large-scale batch production, serving as the mainstream choice for fire pump assemblies and industrial fluid control systems. Standardized material selection (e.g., A356 aluminum alloy), rigorous process control and post-precision processing ensure stable and durable operational performance. Selecting a full-certified, full-chain professional manufacturer with stable batch production capacity is the key to reliable procurement and long-term project operational safety.
