How to test valve body casting​?

Testing a valve body casting involves a structured sequence of inspections—visual examination, dimensional verification, non-destructive testing (NDT), hydrostatic pressure trials, mechanical property checks, and chemical composition analysis. Each step targets a specific failure mode that could compromise the casting's structural integrity under operational loads. For fire pump connectors and similar safety-critical components, skipping even one protocol can trigger catastrophic assembly failures. A disciplined testing approach not only confirms dimensional accuracy and material compliance but also validates that the valve body meets the pressure ratings and certifications your application demands.

Basics of Valve Body Casting Testing

Every fluid control system has a valve body casting that holds the pressure inside. There are different mechanical properties, porosity patterns, and rust behaviors for each base material choice, such as gray cast iron, ductile iron, carbon steel, or aluminum alloy 356. These properties directly affect the inspection plan.

Why Casting Defects Are a Real Risk

According to data from the American Foundry Society, about 40 to 50 percent of all casting rejections are due to internal porosity and shrinkage cavities. A valve body casting that looks fine but fails a 1.5× rated hydrostatic test can cause a pump to lose prime at the worst possible time in fire suppression systems. The best way for a buying team to save money on quality is to find porosity, cold shuts, misruns, and hot tears early on in the supply chain.

Material Certification as a Non-Negotiable Baseline

Make sure that the alloy certification matches the purchase order before starting any physical tests. It is common for fire pump connections to be made of aluminum alloy 356 (A356), which must meet the ASTM B26 tensile minimums of 164 MPa for tensile strength and 124 MPa for yield strength. Quality management systems that follow ISO 9001:2015 require suppliers to give a material test report (MTR) as soon as the goods are received.

Comprehensive Methods to Test Valve Body Casting

A thorough inspection process starts with what the naked eye can see and moves on to things that can only be found by instruments. These are the main ways that every procurement engineer should require evaluations to be done:

• Visual and surface inspection: Trained inspectors look at all exterior surfaces in good lighting for cracks, cold shuts, surface porosity, and differences in size. This step finds about 20–30% of the parts that need to be thrown away before more expensive ways are used.
• Dimensional verification with CMM: These machines make sure that the key bore sizes, flange bolt circles, and wall thicknesses are within the drawing tolerances, which are usually ±0.1 mm for CNC-machined features on a 2.8 kg connector casting. For quality checks that come in, CMM reports keep records that can be tracked.
• Radiographic and ultrasonic NDT: X-ray radiography shows inclusions and holes caused by internal shrinking without cutting the part in half. Phased-array ultrasonic testing (PAUT) finds changes in wall thickness and laminar flaws below the surface. Both ways are in line with ASTM E94 and ASTM E2375, and they are especially useful when the level of internal defects is less than 2%.
• Hydrostatic pressure test: The casting is pressed down to 1.5 times its rated working pressure for a set amount of time, which is usually 60 seconds according to API 598. Any drop in pressure or obvious weeping points to a leak path, which is usually linked to a network of pores that are all related to each other.
• Mechanical property testing: Tensile, yield, and hardness tests on coupon pieces cut from the same heat show that the alloy solidified properly. The Brinell hardness of A356 is usually between 70 and 90 HB after being heated with T6.

These layers of methods give procurement teams objective proof that a supplier's valve body casting will work as needed, and not just on sample lots. They also work when making 5,000 pieces, which is when consistency really matters.

When you're done with these reviews, compare the results to the supplier's own process data. If a seller has ISO 9001:2015, ISO 14001, or ISO 45001 certifications, they should already keep statistical process control charts that make this link clear.

Design Considerations and Their Impact on Testing

Geometry Complexity Drives Inspection Depth

Multi-port fire pump connectors often have complicated internal tubes that trap gas during filling and encourage localized shrinking. When a valve body casting's wall thickness changes by more than 3:1, those changes need to be specifically looked at on x-rays. When the geometry calls for cores, make sure the placement of the cores is correct during dimensional checks. This is because a core that is moved directly lowers the wall thickness and hydrostatic integrity.

Process Choice Shapes Defect Profile

Because controlled filling lowers turbulence-induced porosity, gravity casting and low-pressure casting make microstructures that are denser than traditional sand casting. After casting, shot blasting gets rid of surface oxides and extends wear life. CNC machining of sealing surfaces makes them smooth enough for O-ring and gasket fitting to be reliable (sub-Ra 3.2 µm). By matching the right process to the shape of the part, the chance of a flaw is cut down before even a single test is run.

Comparing Valve Body Casting Testing With Other Manufacturing Methods

There are different ways to inspect forgings and machined bar stock. For ferrous forgings, magnetic particle testing is needed, and ultrasonic scanning is needed for bar stock. But valve body castings have a defect spectrum that is all their own. Porosity, flaws, micro-shrinkage, and mis-runs can be found in valve body castings. Forgings, on the other hand, rarely have porosity but may have laps or gaps from bad die contact.

This difference is important for procurement professionals who are weighing cost against lead time. It may be cheaper to make sand-cast large-bore pump housings, but they need more thorough NDT than investment-cast precise valve body casting. Gravity-cast aluminum alloy 356 connectors are a good compromise because they have less porosity than sand casting, faster cycle times than investment casting, and surfaces that can be machined by CNC, which makes final dimensional compliance easier.

Best Practices for Testing Valve Body Castings in Procurement

Setting up a clear quality agreement before the first order protects both parties. Instead of allowing room for opinion, set acceptance criteria that are based on ASTM, ISO, or API standards. When sellers send in the first sample, you should ask them to include first article inspection (FAI) reports, material test results, and NDT certificates.

Maintain relationships with valve body casting suppliers that are cooperative instead of competitive. Foundries can adjust the gating, risering, and heat treatment for your specific alloy and geometry if you share production volume forecasts and design intent as well as drawings. This teamwork upstream always lowers rejection rates better than checking downstream alone.

Test thoroughly while keeping lead times in mind. For a new fire pump connector provider, an approval cycle of 6–10 weeks is acceptable. This cycle should include sample casting, CMM verification, hydrostatic testing, and a trial production run of 500–1,000 pieces. Front-loading quality investments here keep the line from stopping during full-scale production, which would cost a lot of money.

Conclusion

To test a valve body casting, you have to follow a strict order that includes certifying the material, inspecting the surface and dimensions, using NDT, making sure the pressure is correct, and making sure the valve body is mechanically sound. There is a different failure mode caught by each layer. When procurement teams add these standards to supplier deals and the qualification process for the first item, they create supply chains that produce parts that are consistent and can be certified. A structured casting test routine is the most reliable way to build trust on the assembly line for fire pumps that need to be certified and have no field failures.

FAQ

What is the most reliable NDT method for detecting internal porosity in aluminum castings?

Radiographic testing (X-ray) is still the usual way to figure out the internal gaps in aluminum alloy valve body castings. Radiography and phased-array ultrasonic testing work together to find subsurface laminar defects and measure wall thickness. For fire pump parts, the most reliable way to find defects is to use both methods on all first-article samples and a statistically significant sample of production batches.

How do I verify that a supplier meets international quality standards?

Get copies of the most recent ISO 9001:2015, ISO 14001, and ISO 45001 certificates and check the numbers on them against the public registry of the organization that issued the certificates. Also, look at the supplier's internal quality control paperwork, which should include process capability (Cpk) data for important measurements.

What causes batch-to-batch dimensional variation in cast connectors?

Dimensional drift is usually caused by worn tools, uneven mold release methods, or changes in the alloy's makeup between heats. Suppliers who use CMM-based statistical process control and keep written mold repair plans show significantly lower difference from batch to batch.

At what pressure should a fire pump valve connector be hydrostatically tested?

API 598 says that a hydrostatic shell test should be done at 1.5 times the maximum working pressure for at least 60 seconds, with no obvious leaks allowed.

Partner With Rongbao Enterprise for Certified Valve Body Casting Solutions

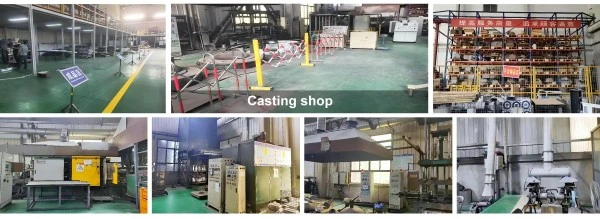

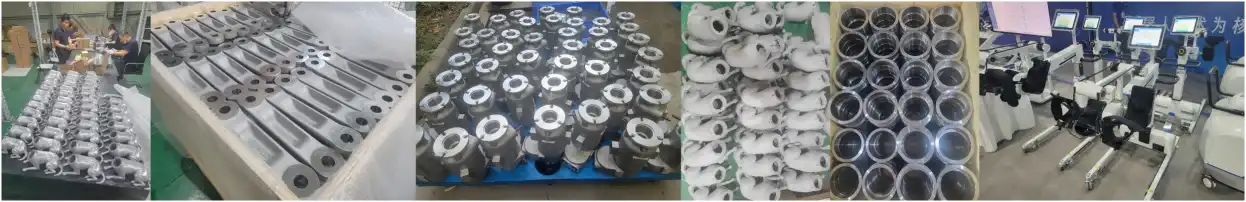

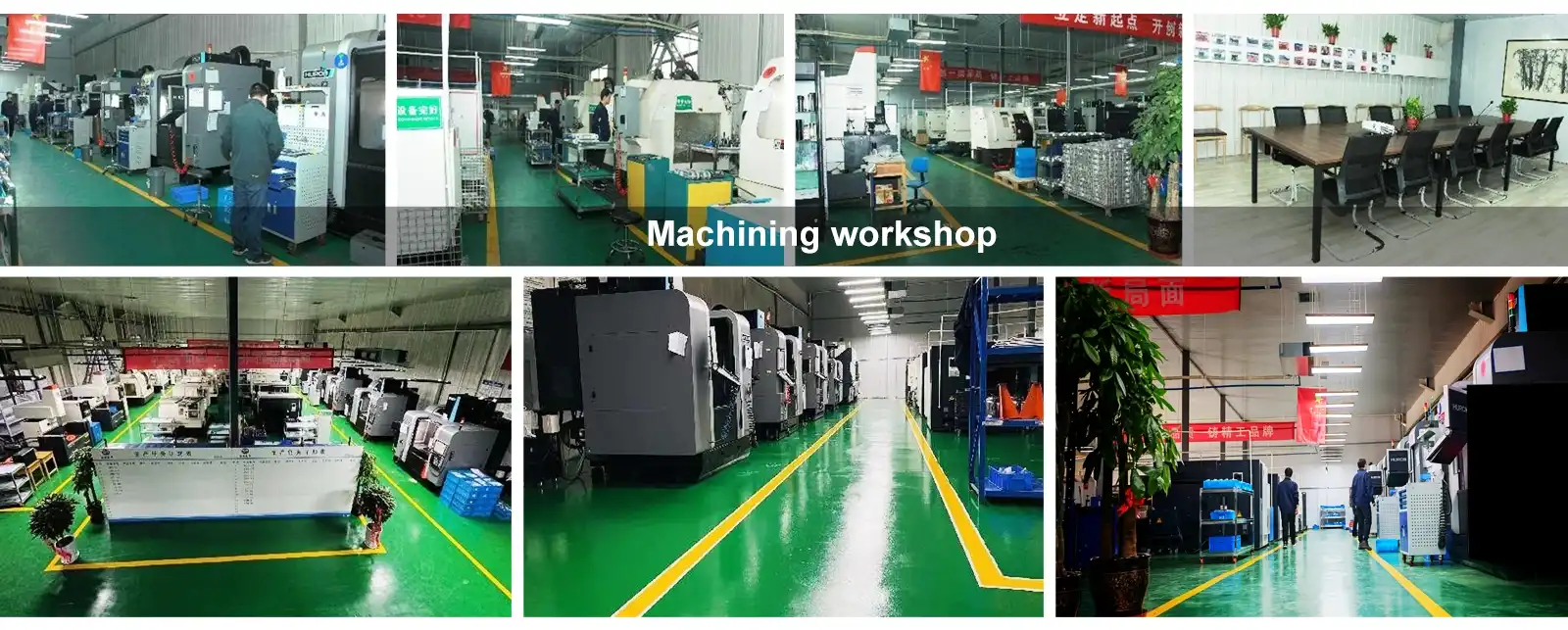

Rongbao Enterprise makes precise valve body out of aluminum alloy 356 that are approved by ISO 9001:2015, ISO 14001, and ISO 45001, which is exactly what fire pump production lines need. We can make up to 5,000 pieces in a single run, and we offer CNC cutting, shot blasting, and OEM/ODM customization. We've been a trusted supplier of valve body castings for 20 years, and 70% of our business goes to Europe, the United States, and Japan. You can count on us to deliver consistent batches. To get a quote, email us at steve.zhou@263.net or zhouyi@rongbaocasting.com, or go to rongbaocasting.com.
