The Ultimate Guide to Sand Molds for Metal Casting: From Novice to Pro

Sand molding is one of the most common techniques for creating metal castings. The process has the capability of accommodating wide range of part sizes, shapes and alloys. A well made sand mold is a viable means to cast molten metal, in relatively basic industrial housings or complex pieces with interior chambers, without the requirement for a permanent metal die. To the newbie this may appear to be a simple job. Punch a hole. Pour in the metal. let it rest . Beat the cast. But in production the output depends on several interrelated variables. The final result has been shown to be affected by characteristics of the sand, precision of the pattern, placement of the cores, design of the gating system, pouring temperature, behavior of solidification and inspection. If you understand how they interact you can identify weaknesses, select the correct molding method, and have an intelligent conversation with a foundry. From basic mold building to production quality control and supplier assessment, this tutorial includes all the intricacies of the critical procedures of sand mold preparation and metal casting.

Understanding How Sand Molds Work

A sand mold is a temporary cavity that reproduces the outer geometry of a design. The mold is generally a combination of foundry sand and a binder system, depending on the method, water or other additives. When the mold is made, the design is removed, and the hollow form is filled with molten metal.

The temporary nature of a sand mold is one of its advantages. The mold can be broken after the metal has set, unlike a permanent metal die. This allows forms to be produced that would be difficult or expensive to cast in a permanent mold.

Green sand is the most widely used material for general manufacture. It typically consists of silica or other suitable base sand, clay or other binder, water, and specific additives. The exact formulation is suited to the alloy, the shape of the casting, the production equipment, and the required surface quality. Any change in these properties can influence the strength, permeability, and consistency of castings. So the moisture and active clay content should be kept in the normal range of the process.

Chemically bonded sand systems can be used to achieve increased mold strength or better control of the dimensions. Depending on the binder system, the curing of the mold can be performed at ambient temperature or by controlled heating. These technologies are often selected for complex castings, larger parts, or for applications needing greater rigidity in the molding process than is available with typical green sand.

The flask, cope, and drag are also vital parts of the molding system. The upper half of the mold is the cope, and the lower half is the drag. Their alignment has to be carefully controlled because even a slight misalignment at the separating line can cause unwanted fins or dimensional variation.

Choosing the Right Foundry Sand

Price is not the only factor considered when selecting sand—the casting material, mold process, surface finish, heat conditions, and manufacturing quantity also are considered.

Due to its availability and suitability to a wide range of ferrous and nonferrous casting applications, silica sand is still extensively used. The size and distribution of grain affect the permeability, surface roughness, mold strength, and the quantity of binder used. Finer grains may result in increased surface reproduction but too fine a grain size may be detrimental to permeability and make removal of gas more difficult.

Use chromite sand where expansion can be controlled and greater thermal stability is needed. It may be useful for demanding applications with high temperature alloys and parts of a mold with high thermal exposure. Chromite is generally more expensive than regular silica sand and is only utilized where its properties provide a real benefit to production.

Zircon sand is valued for its low thermal expansion and resistance to metal penetration. This is especially valuable in applications where dimensional stability and surface quality are important. Depending upon the design of the casting and the requirements of the casting process, foundries could choose to use zircon in only selected areas of the mold, rather than throughout.

Another possibility for some alloys is olivine sand. Its chemical characteristics and thermal behavior can be advantageous where control of the interface between the molding material and molten alloy is sought.

Grain shape is also crucial. Well, interlocking of angular grains helps to strengthen the strength of the mold. More rounder grains may have improved flow qualities in preparation of the mold. There is no optimum grain size or shape for all castings. The proper specification depends on the complete molding system.

Designing Patterns for Accurate Castings

The pattern is the real model from which the mold is constructed, including in sand molding, and hence its accuracy is directly tied to the final casting.

Pattern design is more than the dimensions shown on a print. Metal shrinks when cooled, and there may be some extra material needed for machining. In some geometries distortion may arise. This is because different parts cool at different rates.

Drafting is important. Consider also the draft. Usually vertical surfaces are somewhat tapered to allow the pattern to be removed without disturbing the compacted sand. The appropriate draft angle depends on the pattern material, the condition of the mold, the surface texture, the depth of the feature, and the molding technique.

The line of demarcation should be drawn properly. A well-placed separating line can facilitate pattern removal and reduce the number of cores. It also allows cutting and inspection after casting. It may take numerous iterations of a design before the pattern can be generated in more complicated components.

The material of the pattern is picked according to the production requirements. Wood is an inexpensive choice for prototyping and low-volume production. For extended service life and reproducibility, metal patterns are more appropriate. Polymer patterning and additive manufacturing can also accelerate the process of developing prototypes and evaluating complex geometries before committing to a pattern for production.

For production processes, the pattern should be validated with the casting drawing. Before making the pattern, critical dimensions, machining allowances, tolerances, datum references, and spots needing special attention should be specified.

Using Cores for Internal Cavities

A casting is normally against a conventional pattern on the outside, but inside channels and enclosed chambers normally require cores.

A core is a separate section of sand placed in the mold prior to pouring. It becomes part of the mold system and controls the interior geometry of the final casting. The basic design should be concerned with the strength, dimensional stability, gas generation, support, and removal after solidification.

Core prints are the properties of the pattern used to support and find the core. They have to be dimensioned so as to be able to position reliably without excessive interference when the mold is built.

Also important is ventilating the core. When it contacts a core molten metal, it may create gases that must have an appropriate escape path. If the gas does not escape well from the mold, faults such as gas porosity or blowholes may emerge.

The core assembly is among the most demanding stages of production for castings with many internal channels, particularly when sand molding is used to form and position the cores accurately. One of the reasons a provider should review the whole 3D model or design before pricing a complex sand-cast component.

Building an Effective Gating and Feeding System

The sand mold is more than just the cavity for the casting. It also requires a controlled path for the molten metal to enter the cavity and a technique of allowing for the shrinkage on solidification.

The sprue is the vertical path via which the metal first enters the mold. Its geometry must be designed to manage the flow and to reduce the possibility of air entrainment and excessive turbulence.

Then the runner feeds metal into one or more ingates. The dimensions and position of the runners are influenced by the size of the casting, the alloy, the filling time, and the gating method. Foundry engineers do not assume that one cross-section is always better; they look at the relationship between flow rate, heat loss, turbulence, and available mold area.

Ingates control the point at which metal enters the actual casting chamber. The location can have a significant effect on the pattern of filling and how different bits solidify. In complicated sections, multiple ingates may be necessary to fill narrow sections or to minimize large temperature differences in the casting.

Risers (or feeders) are used to feed extra molten metal into the casting as it solidifies and shrinks. Nutrition deficiency may result in shrinkage voids or other internal discontinuities. The size of risers and their location rely on the alloy, casting modulus, section thickness, local cooling conditions, and the mold design.

For more complex castings, software can mimic filling and solidification of the mold. Simulation cannot replace practical foundry knowledge, but it can help engineers to spot potential filling or feeding difficulties before they start production.

Controlling Mold Preparation and Pouring Conditions

The mold must be prepared in a reproducible manner to obtain a reproducible casting quality. Sand quality has to be checked—don't expect it to be the same over a manufacturing run.

Moisture is particularly important in green sand systems. Excess moisture may result in the increased formation of gases during pouring. Low moisture content may reduce moldability and mold strength. Depending on the molding technology used, the monitoring of the clay activity, permeability, compactability, and related properties should also be taken into account.

That also has to do with the way the sand is compacted. If the concrete is not compacted enough, it can leave weak places that are prone to dissolve readily when the concrete is poured. Too much or uneven compaction decreases the permeability and limits gas escape.

The pouring temperature must be suitable for the chosen alloy and casting shape. If the metal is excessively cold, the thin sections may not fill up completely. Excessive temperature can lead to oxidation, mold erosion, gas-related issues, and other processing problems.

The rate of pouring should also be controlled. Too turbulent a flow could trap air or damage the mold; a fill that is too slow can increase the risk of premature solidification. The correct mix depends on the alloy, casting design, gating system, and mode of manufacturing.

Inspecting Castings and Preventing Common Defects

The inspection should start with the mold and method, not the finished casting. If a failure occurs regularly, it is usually more profitable to uncover the process source of the issue than only to remove the defective part.

Excessive moisture, poor ventilation, binder breakdown, or poor permeability could cause gas-related difficulties. The shrinkage defects are mainly connected to solidification and feeding conditions. Misruns and cold shutdown. Metal temperature, filling time, gating design, or thin section form problems.

Sand inclusions may be the result of mold erosion, inadequate mold strength, damaged mold surface, or bad handling. High mold pressure, poor flask alignment, or damaged mold surfaces might result in flashing or fins near the parting line.

Dimensional examination is important as well. Suppliers can use classic measurement equipment, gauges, optical systems, or coordinate measuring machines, depending on the needs. Critical dimensions shall be checked against the authorized drawing and agreed tolerances, but not by visual appearance only.

Statistical process control is beneficial for repeated manufacturing to find dimensional drift or process variation before it becomes a serious quality concern. Inspection records also can be a significant source of evidence in the event that it is essential to review a casting specification between buyer and supplier.

Where Other Casting Processes Fit?

Sand molding is flexible, but not necessarily the optimal process for every component. Knowledge of alternatives helps the engineer to make a better choice of process.

Lost foam casting is a procedure that uses an expendable foam design that is replaced by molten metal during casting. It can be advantageous for some complex geometries and can eliminate some of the tooling requirements associated with standard patterns.

Shell molding is a process that uses resin-coated sand to create a relatively thin and stiff mold around a heated pattern. Where used, it can give a better surface polish and dimensional repeatability than standard green sand.

Investment casting is a unique procedure in precision casting. Instead of a traditional green-sand mold, it generally uses a wax or polymer pattern covered by a ceramic shell. It is generally adopted when the added process cost is justified by the complicated geometry, fine detail, and relatively tight dimensional requirements.

If sand molding by itself doesn't achieve the necessary mix of surface quality, dimensional control, or mold strength, vacuum-assisted molding and other specialist molding techniques can be employed.

So the correct process depends on the full part specification. In conjunction, issues such as alloy, casting size, shape, annual volume, tolerance, surface requirements, tooling cost, and downstream machining should be considered.

What Buyers Should Confirm Before Ordering Sand-Cast Parts?

To the purchaser, the choice of a supplier should be more than a comparison of the unit price of a casting. The provider must have sufficient technical information to evaluate if the proposed molding technique is suitable.

The first things that are usually provided are the part drawing or 3D model, material grade, estimated casting weight, needed quantity, crucial dimensions, tolerance requirements, and surface parameters. If machining is done after casting, the regions to be machined and the final dimensions should also be marked.

It is also useful to ask the supplier what he intends to do with the pattern, cores, gating system, and machining allowance. For a complicated part, these decisions might affect tooling cost and long-term dimensional consistency.

Quality documentation should be discussed before production begins. Depending on the application, purchasers may require dimensional inspection reports, material certificates, chemical composition records, mechanical test findings, non-destructive testing, or other inspection paperwork.

Also, it should distinguish the lead time = tooling time + production time. A fresh pattern can need a different timetable than a repeat order using a current pattern for a prototype. Good communication at the quote stage avoids surprises down the track.

Working with Rongbao Enterprise on Sand Casting Projects

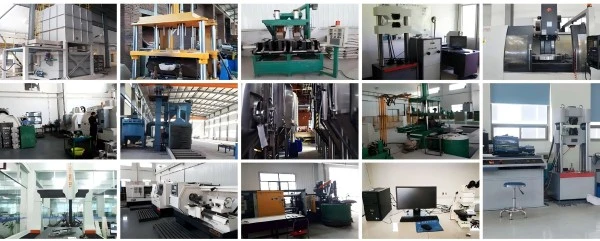

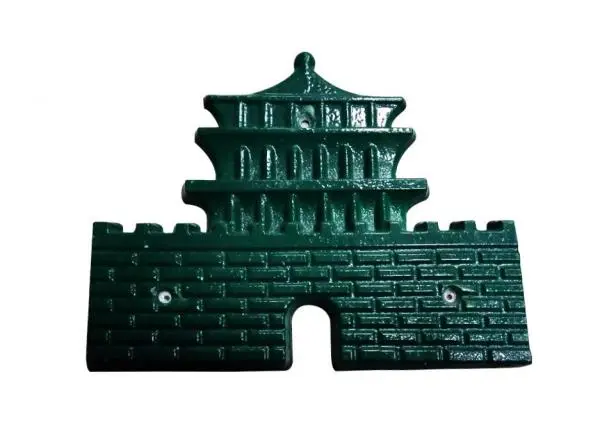

Rongbao Enterprise provides metal casting and related manufacturing services to customers who need prototype development, customized castings, and production components. It has numerous casting methods and precision machining capabilities so that the requirements of casting and downstream processing can be considered jointly.

This integrated technique might be helpful to the customer who evaluates sand molding when the casting has complex geometry, internal cavities, machining needs, or strict dimensional demands. The engineering evaluation can concentrate on pattern design, cores, gating, material selection, casting allowances, and inspection needs prior to the start of production.

Rongbao Enterprise says its manufacturing capabilities are for automotive, aerospace, industrial equipment, electronic communications, and medical-related applications. The firm states that its quality management and manufacturing processes are backed by certifications including ISO9001, ISO14001, ISO45001, and IATF16949.

The provider also has a very good experience in working with foreign customers and selling to European, American, and Japanese markets. This type of experience can be helpful to overseas purchasers, as casting projects often have distinct drawing conventions, inspection requirements, documentation expectations, and logistics preparations.

When obtaining a price, clients may supply the casting drawing or 3D model, alloy specification, annual or batch quantities, crucial tolerances, machining needs, and inspection expectations. This information allows the engineering team to better assess the molding process and provide a feasible quote.

Conclusion

The process flexibility, variability of mold materials, and capacity to manufacture components ranging from relatively simple shapes to very complicated geometries make sand molding still a significant method of metal casting. But getting consistent results takes a lot more than simply pouring molten metal into a hollow. The final casting is affected by the sand characteristics, pattern precision, cores, gating and feeding design, pouring conditions, solidification behavior, and inspection.

These connections are a good basis for the assessment of casting processes for beginners. This information is also of value to experienced engineers and purchasing teams when they are analyzing supplier proposals, researching problems, or making decisions about the production suitability of a casting design.

A good sand-casting project should therefore be based on a detailed technical analysis and not only on unit-price comparison. Buyers can assist the foundry in developing an appropriate process by giving accurate drawings, material requirements, tolerances, numbers, machining specifications, and inspection expectations. Rongbao Enterprise can evaluate these needs and support customers from casting process development to the manufacturing of completed components.
