High Pressure die Casting Calculation

The Fundamentals of High Pressure Die Casting

A solid understanding of high pressure die casting fundamentals is required before proceeding with the computations.This process involves injecting molten metal into a mold cavity under high pressure. The pressure is maintained until the casting solidifies, resulting in complex, precision-engineered parts with excellent surface finishes.

High pressure die casting is particularly favored for its ability to produce large quantities of complex parts quickly and cost-effectively.When consistency and accuracy are of the utmost importance, it is used for component manufacture in sectors like electronics, aircraft, and automobiles.

Key Components in High Pressure Die Casting

The high pressure die casting process relies on several key components:

• Die casting machine: The heart of the operation, responsible for injecting molten metal into the mold
• Die: The mold that gives shape to the final product
• Shot sleeve: Where the molten metal is poured before injection
• Plunger: Pushes the molten metal into the die cavity
• Clamping system: Keeps the die halves tightly closed during injection and solidification

Understanding these components is crucial for grasping the calculations we'll explore next.

Clamping Force Calculation in High Pressure Die Casting

In high pressure die casting, clamping force is an important characteristic.It's the force required to keep the two halves of the die closed during the injection of molten metal. Insufficient clamping force can lead to flash (excess material at the parting line) or even die separation, resulting in defective parts.

The Clamping Force Formula

The basic formula for calculating clamping force is:

F = P * A * K

Where:

• F = Clamping force (tons)
• P = Cavity pressure (tons/in²)
• A = Projected area of the casting (in²)
• K = Safety factor (typically 1.1 to 1.2)

Factors Influencing Clamping Force

Several factors can affect the required clamping force in high pressure die casting:

1. Part geometry: Complex shapes with thin walls may require higher clamping forces
2. Material properties: Different alloys have varying flow characteristics and solidification rates
3. Injection pressure: Higher injection pressures necessitate greater clamping forces
4. Die design: The parting line design and gating system can influence the required force

Accurate clamping force calculation is crucial for selecting the appropriate die casting machine and ensuring consistent part quality.

Filling Time Calculation in High Pressure Die Casting

Filling time refers to the duration it takes for the molten metal to completely fill the die cavity.To achieve the best possible part quality and reduce the number of faults, this characteristic is essential.

The Filling Time Formula

The basic formula for calculating filling time is:

t = V / Q

Where:

• t = Filling time (seconds)
• V = Volume of the casting (in³)
• Q = Flow rate of the metal (in³/second)

Factors Affecting Filling Time

Several factors can influence the filling time:

1. Gate design: The size and location of gates affect how quickly the metal enters the cavity
2. Metal temperature: Hotter metal tends to flow more easily, reducing filling time
3. Die temperature: Preheated dies can help maintain metal fluidity
4. Injection pressure: Higher pressures generally result in faster filling times
5. Part complexity: Intricate shapes with thin sections may require longer filling times

Optimizing filling time is crucial for balancing part quality with production efficiency. Too short a filling time can lead to incomplete fills or cold shuts, while excessively long filling times can result in premature solidification and associated defects.

Specific Pressure Calculation in High Pressure Die Casting

Specific pressure, also known as cavity pressure, is the pressure exerted on the molten metal within the die cavity during injection.To achieve the specified part qualities and make sure the mold is filled completely, this parameter is critical.

The Specific Pressure Formula

The basic formula for calculating specific pressure is:

P = F / A

Where:

• P = Specific pressure (psi or MPa)
• F = Injection force (lbs or N)
• A = Projected area of the casting (in² or m²)

Importance of Specific Pressure

In high pressure die casting, specific pressure plays a vital role in:

1. Ensuring complete mold filling, especially for thin-walled parts
2. Minimizing porosity and other internal defects
3. Achieving desired surface finish and dimensional accuracy
4. Controlling solidification rate and resultant material properties

Balancing specific pressure is crucial. Insufficient pressure can lead to incomplete fills and porosity, while excessive pressure can cause flash, die wear, or even die failure.

Mastering the calculations for clamping force, filling time, and specific pressure is essential for optimizing the high pressure die casting process.In order to effectively generate high-quality components, it is necessary to properly balance these interrelated criteria.

As the manufacturing industry continues to evolve, the demand for precise, high-quality die cast components is only growing.Gaining a grasp of these equations might empower individuals in the automotive, aerospace, medical, or electrical sectors to create exceptional goods at a competitive advantage.

High Pressure Die Casting Supplier: Rongbao Enterprise

If you're seeking a reliable partner for your high pressure die casting needs, consider Rongbao Enterprise. Rongbao has been in business since 2003 and has become a specialist in making aluminum alloys and doing precise work. Rongbao helps machine makers in a lot of different industries get all the parts they need. They care about the atmosphere, being creative, and getting things right.

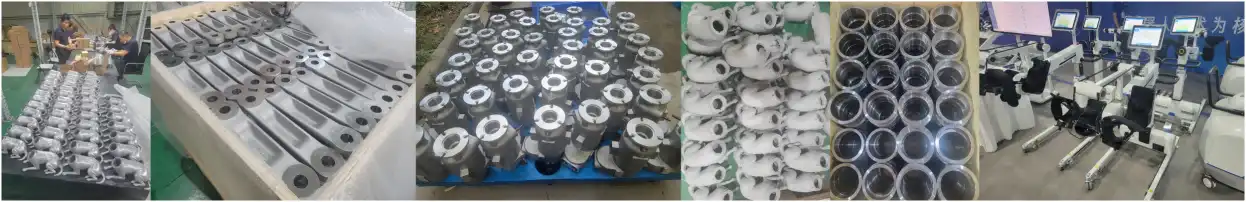

Rongbao's product range includes:
