Explosion Proof Pull Box In Concrete Class 1 Division 1

In industries where potentially explosive atmospheres are a constant concern, safety is paramount. One critical component in maintaining a secure working environment is the explosion proof pull box, particularly when installed in concrete structures within Class 1 Division 1 areas.

Design Features for Explosion Proof Pull Boxes

To perform reliably in C1D1 concrete environments, explosion proof pull boxes must integrate explosion resistance with concrete-compatible durability. Every design element, from material selection to sealing mechanisms, is engineered to address the dual challenges of containing explosions and withstanding concrete's harsh conditions.

Material choice is paramount. The enclosure itself is typically constructed from heavy-gauge cast aluminum, carbon steel, or 316 stainless steel. Cast aluminum offers a balance of strength and corrosion resistance, making it suitable for dry to moderately damp concrete areas, while 316 stainless steel is preferred for highly alkaline or moisture-rich environments (e.g., concrete tanks or underground bunkers) due to its resistance to chloride and chemical attack. Carbon steel, often galvanized or epoxy-coated, provides exceptional strength for embedded applications, with coatings that prevent corrosion from concrete's alkalinity.

The explosion proof integrity is maintained through a flameproof design, as defined by IEC 60079-1. This includes a precision-machined flame path, a narrow, continuous gap between the box body and cover, which cools and quenches flames if an internal explosion occurs. In C1D1, the flame path must meet strict tolerances: for example, UL 1203 requires maximum clearances of 0.001 inches for Group IIC gases (e.g., hydrogen), ensuring no flame can escape to ignite external atmospheres. For concrete applications, this flame path is further protected by robust gaskets, usually made of nitrile or fluorocarbon rubber, that resist degradation from concrete's alkalinity and prevent moisture ingress.

Explosion Proof Pull Boxes: Key Features

Explosion proof pull boxes are specialized electrical enclosures designed to contain and prevent the propagation of explosions. These robust devices play a crucial role in hazardous locations where flammable gases, vapors, or dust are present. The primary function of an explosion proof pull box is to house electrical connections and components while ensuring that any internal explosion does not ignite the surrounding atmosphere.

Key features of explosion proof pull boxes include:

• Rugged construction, typically made from cast aluminum or stainless steel
• Precision-engineered flame paths to cool escaping gases
• Tight-fitting covers with specialized gaskets
• Threaded conduit entries for secure connections
• Grounding provisions to prevent static electricity buildup

These features work together to create a barrier between the potentially explosive internal environment and the external hazardous atmosphere. In the event of an internal ignition, the explosion proof pull box contains the explosion and prevents it from spreading to the surrounding area.

Class 1 Division 1 Environments: Challenges and Safety Measures

Class 1 Division 1 locations are among the most hazardous environments in industrial settings. These areas are characterized by the presence of ignitable concentrations of flammable gases, vapors, or liquids under normal operating conditions. Examples of such environments include:

• Petroleum refineries
• Fuel storage facilities
• Chemical processing plants
• Paint spray booths
• Certain areas in automotive and aerospace manufacturing

The challenges posed by Class 1 Division 1 environments are significant. Any electrical equipment installed in these areas must be designed and certified to operate safely without introducing ignition sources. This is where explosion proof pull boxes become crucial.

Safety measures for Class 1 Division 1 areas include:

• Strict adherence to electrical codes and standards (e.g., NEC, IEC)
• Use of intrinsically safe equipment and wiring methods
• Regular inspection and maintenance of electrical systems
• Proper training for personnel working in hazardous locations
• Implementation of comprehensive hazard assessment and risk management strategies

By incorporating these safety measures and utilizing appropriate explosion proof equipment, industries can significantly reduce the risk of accidents in Class 1 Division 1 environments.

Implementing Explosion Proof Pull Boxes in Concrete Installations

Installing explosion proof pull boxes in concrete structures presents unique challenges and requires careful planning and execution. The process involves several critical steps to ensure the integrity and effectiveness of the installation:

1. Site Assessment: Conduct a thorough evaluation of the installation area to determine the exact classification and requirements.
2. Box Selection: Choose an explosion proof pull box that meets or exceeds the area classification and is suitable for concrete installation.
3. Concrete Preparation: Plan the box location and prepare the concrete form, ensuring proper reinforcement and spacing.
4. Conduit Installation: Install explosion proof conduits and fittings before pouring concrete, ensuring they align perfectly with the pull box entries.
5. Box Placement: Securely position the explosion proof pull box within the concrete form, ensuring it is level and properly oriented.
6. Concrete Pouring: Pour the concrete carefully, taking precautions to prevent damage to the pull box or displacement of conduits.
7. Post-Installation Inspection: Once the concrete has cured, thoroughly inspect the installation to ensure the pull box remains accessible and functional.

It's very important to choose professionals that know how to do explosion-proof installations in concrete. This makes sure that all laws and requirements are followed while keeping safety at the highest level.

When selecting an explosion proof pull box for concrete installation in Class 1 Division 1 areas, consider the following factors:

• Material compatibility with the concrete environment
• Corrosion resistance, especially in harsh industrial settings
• Proper sizing to accommodate all necessary electrical connections
• Ease of maintenance and future access
• Certification for the specific hazardous location classification

By carefully considering these factors and following proper installation procedures, industries can ensure the long-term safety and reliability of their electrical systems in hazardous locations.

The Role of Quality Manufacturers in Ensuring Safety

The safety of explosion-proof equipment depends a lot on the quality and reliability of the company that makes it. Rongbao Enterprise is a top maker of explosion-proof pull boxes and knows how important these goods are in dangerous places.

Rongbao's dedication to quality is seen from its ISO9001:2015, ISO14001, and ISO45001 certifications. These certificates show that they follow international rules for managing quality, the environment, and health and safety at work.

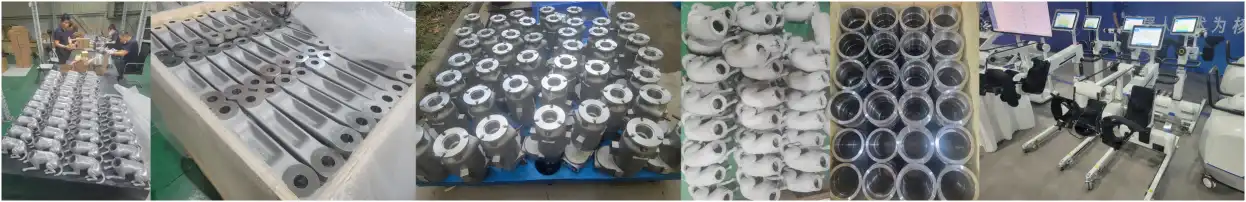

With a production capacity of 50,000 pieces and the ability to customize specifications, Rongbao is well-equipped to meet the diverse needs of industries operating in Class 1 Division 1 environments. Their explosion proof pull boxes are designed for various applications, including as alarm device parts, making them suitable for a wide range of industrial settings.

For industries seeking reliable explosion proof pull boxes for concrete installations in Class 1 Division 1 areas, Rongbao offers expert guidance and high-quality products. To learn more about their offerings or to discuss your specific requirements, you can contact their team at zhouyi@rongbaocasting.com or steve.zhou@263.net.

References

1. National Fire Protection Association. (2020). NFPA 70: National Electrical Code.
2. Occupational Safety and Health Administration. (n.d.). Hazardous Locations - Classes, Divisions and Groups.
3. International Electrotechnical Commission. (2017). IEC 60079: Explosive atmospheres.
4. American Petroleum Institute. (2018). API RP 500: Recommended Practice for Classification of Locations for Electrical Installations at Petroleum Facilities.
5. Mcpartland, J. F., & Mcpartland, B. J. (2017). National Electrical Code 2017 Handbook. McGraw-Hill Education.
6. Babiarz, P. S. (2011). Electrical and Instrumentation Safety for Chemical Processes. Springer New York.
