Die Cast VS Sand Cast Strength

When deciding which metal casting process to use for business purposes, it is very important to know how strong the finished product will be. By injecting molten metal under high pressure into precise steel molds, die casting achieves better shape accuracy and uniform mechanical qualities. In aluminum alloys, it usually achieves tensile strengths of 300 to 400 MPa. While sand casting can be used to make parts with complex shapes and bigger sizes, the parts it makes usually have tensile strengths between 200 and 350 MPa, though this can vary based on the material and how it is cooled. In die cast processes, the metal cools quickly and is put under pressure, which makes the grains more dense and reduces the number of holes in them. This directly leads to better strength properties compared to traditional sand casting methods.

Understanding Casting Strength: Key Concepts and Metrics

Casting strength includes important mechanical qualities that decide how well a part works in harsh industrial settings. Tensile strength, yield strength, wear resistance, and impact toughness are some of these qualities. The microstructure and porosity levels reached during the casting process have a direct effect on all of them.

Mechanical Properties That Define Component Performance

The substructure of cast parts has a big effect on how they behave mechanically when they are put under stress in service. Tensile strength is the most stress that a material can take before it breaks, and yield strength is the stress level at which the material starts to change shape permanently. Fatigue resistance tells us how well a part works when it is loaded and unloaded many times. This is especially important in aerospace and automobile uses where stress cycles happen often.

Process factors are very important in figuring out the end strength properties. The rate of cooling affects the formation of grains. For example, grains that cool faster tend to be smaller and have higher strength values. The materials used in the mold affect how fast heat is extracted, and applying pressure during solidification lowers the number of holes and raises the density. Die casting cools at rates of 10–100°C per second, while sand casting cools at rates of 0.1–1°C per second. This makes the microstructures and strength profiles of the two methods very different.

Industry Standards and Testing Protocols

Procurement experts use well-known testing standards to regularly judge the quality of castings. ASTM E8 sets normal processes for tensile testing, and ASTM E23 talks about how to do impact testing. ISO 6892 provides international standards for checking metals, making sure that specs and quality assessments are the same all over the world.

Protocols for testing include a number of different ways to evaluate performance that are tailored to specific needs. Tensile tests find out the final strength and elongation of a material, hardness tests find out about the features of the surface and the material below the surface, and impact tests see how well the material can absorb energy. X-ray radiography, ultrasonic testing, and magnetic particle inspection are all non-destructive testing methods that find flaws inside a component that could cause it to fail during service.

Die Casting VS Sand Casting: Strength Comparison and Analysis

In both casting methods, the choice of material has a big effect on the strength properties. Most of the time, aluminum, zinc, and magnesium metals are used in die casting because they work best for high-pressure filling and quick solidification. These non-ferrous alloys have great strength-to-weight ratios. For example, aluminum alloys can reach tensile strengths of up to 400 MPa while still being lightweight, which is important for uses in aircraft and cars.

Material Capabilities and Strength Ranges

Sand casting can be used with a wider range of materials, such as metal alloys like steel and cast iron, which are very strong for heavy-duty use. Gray iron castings have tensile strengths between 200 and 400 MPa and are better at dampening vibrations. Ductile iron, on the other hand, can have tensile strengths of over 600 MPa and is better at resisting impact. Sand-cast steel has tensile strengths of more than 800 MPa, which means it can be used in high-stress construction uses.

Rapid cooling that comes with die casting makes microstructures with few holes that are finely grained. This directly improves the mechanical properties. Because the density and grain fineness are better in die cast aluminum parts than in sand cast parts, the strength values of die cast aluminum parts are usually 10-15% higher. Sand casting, on the other hand, cools more slowly, which lets stress be relieved and can make thick-section parts with more regular features.

Common Defects and Quality Control Measures

Defect patterns are very different between methods, which affects the strength of the finished part. Die cast parts can have porosity from trapped gas, cold shuts from molds that aren't fully filled, or flash from too much injection pressure. These flaws make stress concentrate and lower the useful cross-sectional area, which directly hurts the power performance.

There are problems with sand casting, such as holes that get smaller because the sand isn't fed properly, sand particles from mold erosion, and changes in size due to heat expansion. To keep the strength of each production batch the same, quality control measures must take into account these process-specific issues by making sure the mold is properly prepared, the gates are designed correctly, and the process parameters are optimized.

Procurement Considerations: Selecting Between Die Cast and Sand Cast Parts

When making procurement choices, you have to weigh the need for strength against the ability to manufacture and the cost structure. For load-bearing uses, it's important to carefully look at stress patterns, safety factors, and weather conditions to make sure that the part works well for its whole time.

Application-Specific Strength Requirements

Engine blocks and transmission housings are examples of automotive parts that need to have uniform mechanical features across large production runs. This is why die casting is the best way to make aluminum parts that need to be light and accurate in size. The process gives tensile strengths between 320 and 380 MPa in A380 aluminum alloy with very little difference between parts and great accuracy.

When used in heavy machinery, final strength is often more important than weight, so sand cast iron and steel parts are often preferred. Sand casting is a good way to make thick-section parts out of malleable iron that can have tensile strengths of more than 500 MPa while still having complex internal paths for hydraulic fluid flow.

Cost-Performance Analysis and Lead Time Considerations

When die casting, the initial cost of the tools used is usually very high, running from $50,000 to $200,000 for complicated car parts. If you make more than 10,000 units a year, this investment becomes worthwhile because the better accuracy in measurements and lower need for cutting more than cover the cost of the original tools.

Patterns for sand casting can cost anywhere from $5,000 to $25,000, based on how complicated they are. This gives you more options for making prototypes and small batches. Lead times for sand cast samples can be 4 to 6 weeks, while lead times for die cast tooling are 12 to 16 weeks. This makes sand casting a better choice for development projects and other uses that need to make changes quickly.

Design Tips to Maximize Strength in Die Cast and Sand Cast Components

Design improvement has a big effect on the strengths that can be reached in both casting methods. Engineers can make sure that parts work as well as possible while still being easy to make and affordable by understanding process-specific design principles.

Die Cast Design Considerations for Enhanced Strength

Wall width regularity is very important in die casting to make sure the right amount of filling and to stop holes from forming. Keeping the wall thickness between 2 and 6 mm improves strength and prevents fractures. Gradual changes between section thicknesses lower load concentrations. Draft angles between 1-3 degrees make it easier to remove parts without changing their dimensions or making stress risers.

Ribbing techniques improve the performance of structures without adding too much weight. To keep cooling rates even and avoid sink marks, the thickness of the ribs should be 50–75% of the thickness of the wall next to them. Strategically placing ribs spreads loads out well while keeping the benefits of thin walls that come with die casting design.

Sand Cast Optimization Strategies

Controlling solidification patterns to get the best microstructures is what sand casting design is all about. Different section thicknesses need careful thought when it comes to cooling rates, since thick sections may form coarse grain structures that weaken the structure. The right design of the feeding system makes sure that there is enough metal supply during solidification shrinking, which stops cavities from forming that weaken the structure.

Optimizing the gate system lowers the amount of turbulent flow during mold filling, which lowers the amount of oxide spots and gas pores that weaken the final parts. Bottom gating devices help laminar flow and let trapped gases escape through risers, which makes the casting sounder and stronger overall.

Future Trends and Innovations Impacting Casting Strength

As technology keeps getting better, throwing skills keep changing, giving stronger results and more reliable processes. These new ideas help makers meet performance standards that are getting higher while still staying profitable.

Advanced Process Technologies

Controlled atmosphere input in vacuum die casting gets rid of gas porosity, resulting in near-theoretical density and better mechanical qualities. This technology raises the tensile strength by 15–20% compared to standard die casting. It also makes it possible to heat treat metals that normally can't be heated, which opens up more uses in high-performance areas.

Simulation software lets you look for defects before they happen during the planning process, so you can find possible power limits before you spend money on production tools. Advanced modeling can predict how the material will cool, where the stress will be distributed, and how the microstructure will form. This lets both the design of the part and the process factors be optimized to get the best strength qualities.

Emerging Materials and Hybrid Manufacturing

When made especially for die casting, high-strength aluminum alloys can reach tensile strengths of up to 450 MPa while still being easy to cast. These high-tech metals have grain refiners and strengthening elements that work best in the fast-solidification conditions that come with pressure casting.

Hybrid manufacturing methods use both casting and additive manufacturing to make complicated shapes that were not possible with traditional methods. These technologies allow for internal cooling pathways, built-in fastening features, and efficient load paths that make parts stronger while lowering their weight and the number of parts they need in assembly tasks.

Conclusion

When you compare the strength of die cast and sand cast parts, you can see that each has its own benefits that are best for certain applications. Die casting is great for making high-strength, reliable parts that are also very accurate in size. This makes it perfect for high-volume uses in car and consumer electronics. Sand casting is the most flexible way to make big, complicated parts that need to be the strongest possible in metal materials. To choose the best casting process, procurement workers have to look at application-specific needs like load conditions, output volumes, and cost limits. By understanding these basic differences, you can make choices that balance performance needs with the realities of manufacturing. This makes sure that you can find the right parts for tough industrial uses.

Partner with Rongbao Enterprise for Superior Casting Solutions

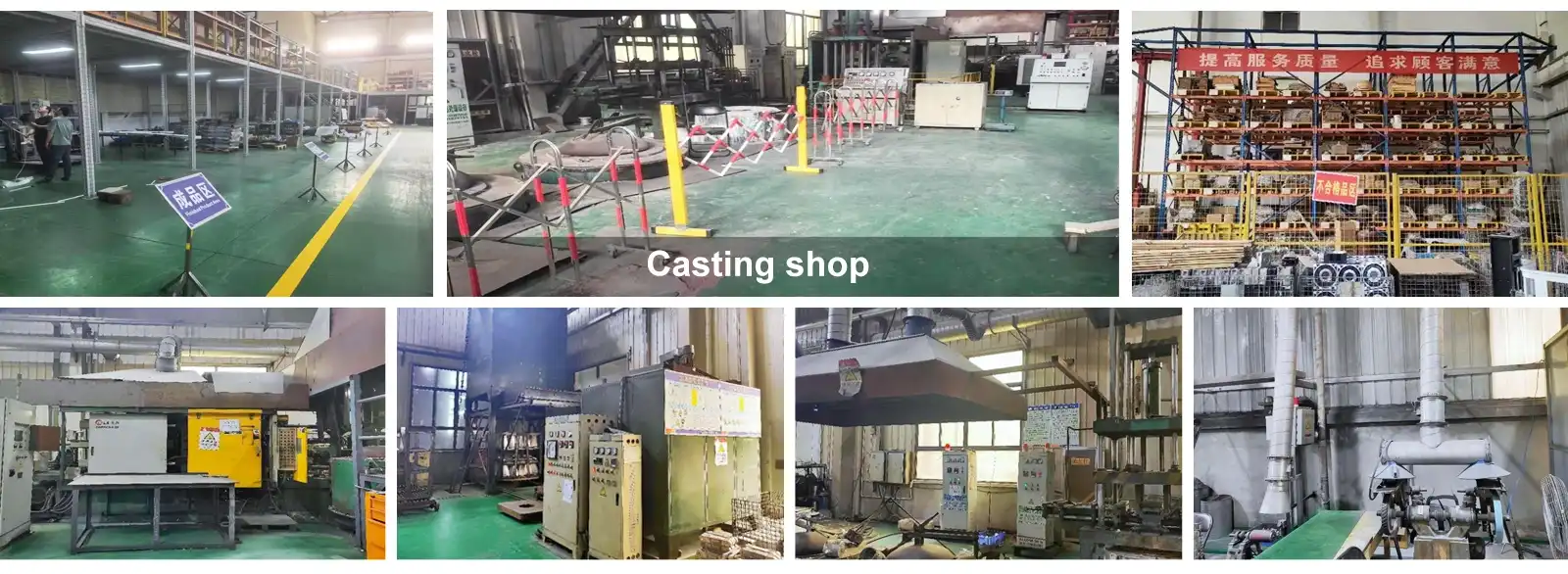

Rongbao Enterprise has been casting for 20 years and can do a wide range of production tasks, including high-pressure die casting, low-pressure casting, and precision milling. Our ISO9001, ISO14001, and ISO45001 certifications make sure that our quality standards are always the same and meet the high standards needed for uses in the energy sector, the car industry, and industrial equipment. Since 70% of our production goes to markets in Europe, the United States, and Japan, we know exactly what power standards and compliance requirements are important for your purchase to go well.

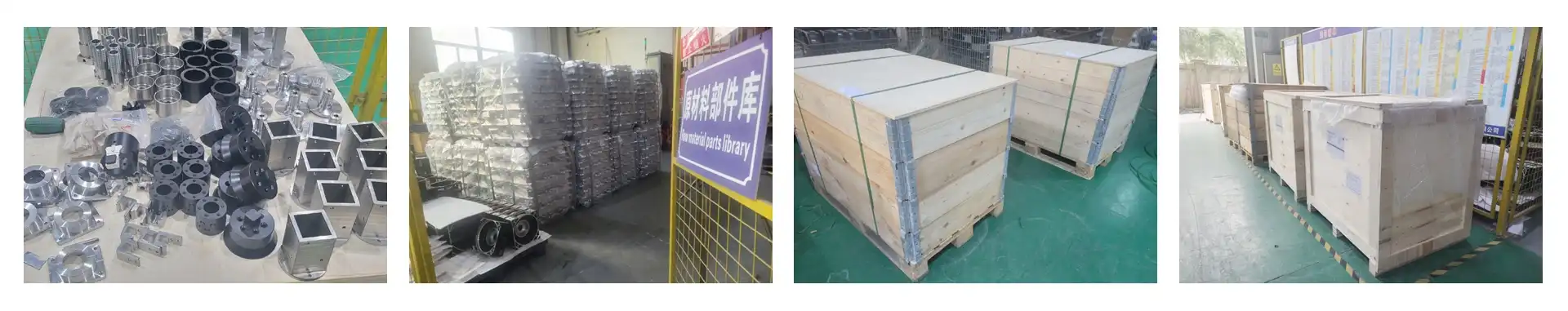

Our full-chain manufacturing method includes making molds, castings, precise machining, and surface treatment. This way, we can provide complete component solutions that make the supply chain simpler. Get in touch with our engineering team at steve.zhou@263.net or zhouyi@rongbaocasting.com to talk about your specific strength needs and find out how our advanced die casting skills can help your parts work better and your supply chain run more smoothly.

FAQ

What are the typical strength differences between die cast and sand cast aluminum components?

Because they cool quickly and make fine grains, die casting aluminum parts usually have tensile strengths of 300 to 400 MPa. Tensile strengths for sand-cast aluminum parts are usually between 200 and 350 MPa, but can be higher or lower based on the metal and how it is cooled. Die casting has a 10-15% strength edge over casting because it has less porosity and a more uniform microstructure thanks to high-pressure filling and controlled solidification.

How do production volumes influence the choice between die casting and sand casting for strength-critical applications?

The amount of production has a big effect on the costs of process selection and the level of quality uniformity that can be achieved. Die casting is only cost-effective for orders over 10,000 per year because it requires a lot of money to buy the tools needed, but it gives you better strength stability and physical accuracy. Sand casting works well for smaller orders (100 to 10,000 units) because the cost of the tools is flexible. However, the strength may vary more between batches because of process factors and human work.

Which casting process provides better fatigue resistance for cyclic loading applications?

Die casting parts usually have better wear resistance because the grains are thinner and there are fewer holes in them. Because die casting hardens quickly, it makes microstructures that are more regular and less likely to crack when they are loaded and unloaded over and over again. But sand-cast metal alloys, such as ductile iron, can work very well in high-stress situations where the final strength needs to be higher than what an aluminum alloy can provide.

References

1. Campbell, John. "Castings: The New Metallurgy of Cast Metals." Butterworth-Heinemann, 2003.

2. Flemings, Merton C. "Solidification Processing in Metal Casting." McGraw-Hill Professional, 1974.

3. Groover, Mikell P. "Fundamentals of Modern Manufacturing: Materials, Processes, and Systems." John Wiley & Sons, 2020.

4. Kaufman, J. Gilbert. "Properties of Aluminum Alloys: Tensile, Creep, and Fatigue Data at High and Low Temperatures." ASM International, 1999.

5. Stefanescu, Doru Michael. "Science and Engineering of Casting Solidification." Springer, 2015.

6. Viswanathan, S. "An Overview of Permanent Mold Casting." American Foundry Society, 2002.
