Cast Connecting Plate: Precision Sand Casting Solution for Radar Power Systems

Shaanxi Rongbao Machinery Electronics Co., LTD. delivers enterprise-grade Cast Connecting Plate solutions manufactured through advanced sand casting technology. Engineered from A356-T6 aluminum alloy, our product serves as a critical mounting component for radar power supply systems, featuring a substantial 495kg weight capacity. With ISO 9001:2015, ISO 14001, and ISO 45001 certifications, we maintain stringent quality control throughout production. Our facility achieves an impressive production capacity of 5,000 pieces annually while maintaining delivery schedules of 20-30 working days. Backed by 14 utility model patents and recognition as a National High-Tech Enterprise, we export 70% of our components to demanding markets including the United States, Europe, and Japan.

Why Choose Sand Casting for Your Connecting Plates?

In case of very heavy components, sand casting has its own advantages. The weight requirement of 495kg is easily fulfilled.

You can change the design as you wish. Mould changes are cheaper than tooling changes needed for diecasting processes.

No complex internal structures need to be assembled. Integrated strengthening ribs and attachment points make your radar power supply mount better.

Material costs are still very competitive for medium-volume production runs. Our annual capacity of 5,000 pieces fits well into specialised equipment manufacturing schedules.

What Makes Our Cast Connecting Plate Stand Out?

Our connecting plates are manufactured using precision sand casting processes. This method allows us to create complex geometries that meet your exact specifications.

The A356-T6 aluminum alloy material provides exceptional strength-to-weight ratios. Your equipment benefits from robust structural integrity without unnecessary bulk.

Each plate undergoes CNC machining for dimensional accuracy. Shot blasting surface treatment ensures optimal finish quality and corrosion resistance.

Technical Specifications

Comprehensive Manufacturing Process

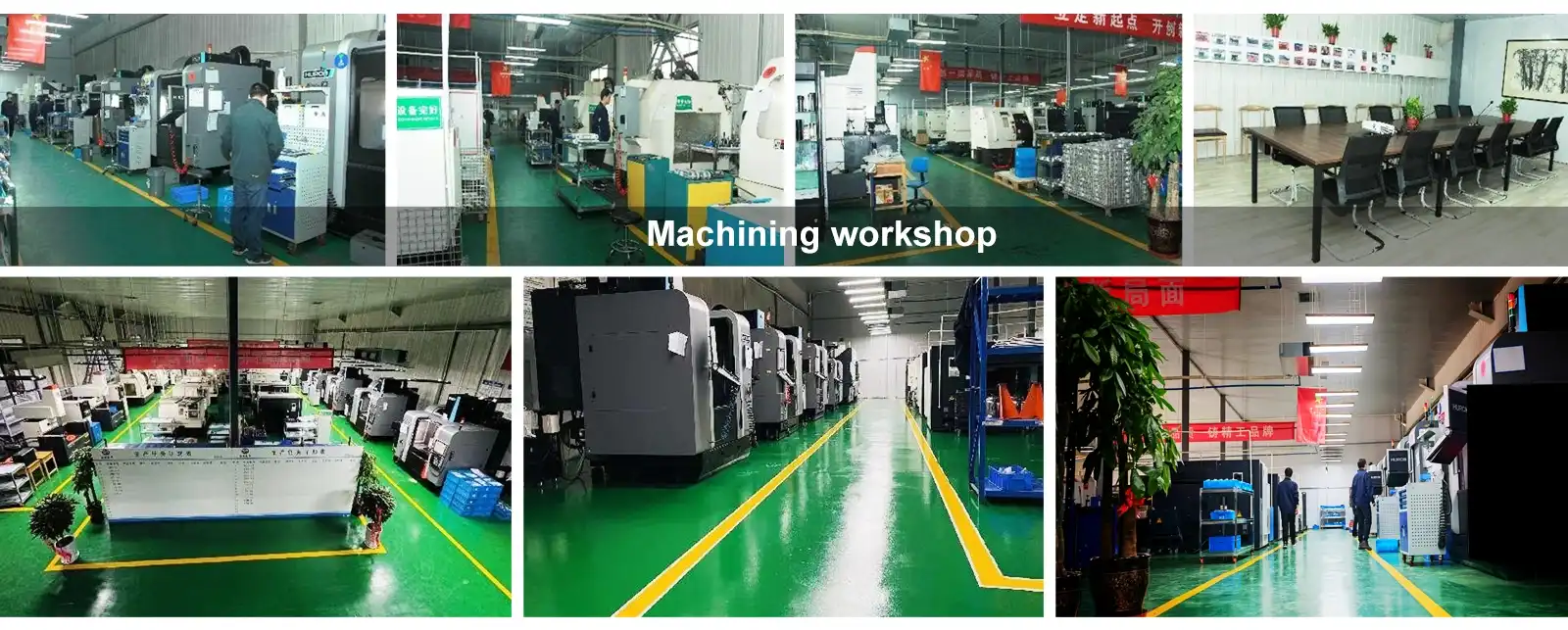

We integrate multiple production stages under one roof. This vertical integration ensures quality control at every step.

Mold Development: Our engineering team creates custom molds based on your technical drawings or 3D models. Mold manufacturing typically requires 15-25 days.

Sand Casting Production: Molten A356 aluminum alloy is poured into precision molds. This process accommodates the complex shapes required for your radar mounting applications.

Heat Treatment: T6 tempering enhances mechanical properties and dimensional stability. Your components achieve optimal hardness and durability.

CNC Machining: Advanced machining centers deliver tight tolerances on critical dimensions. Every mounting surface meets your specified requirements.

Surface Finishing: Shot blasting removes casting scale while creating uniform surface texture. This preparation enhances paint adhesion and corrosion resistance.

Quality Inspection: Each Cast Connecting Plate undergoes dimensional verification and visual inspection before packaging.

Quality Assurance You Can Trust

The three ISO certifications reflect our dedication to systematic quality management. You get components produced to internationally recognised standards.

We successfully passed the difficult supplier audit of ABB's SSBM. This achievement is a testament of our ability to meet the stringent technical criteria of world class technology leaders.

We have 14 utility model patents, all of them are related to complex casting technology. These innovative techniques improve the structural performance of your connection plates.

Customization Capabilities

Your specs. Your way. In manufacturing. We accept customer designs, CAD files and technical required documentation.

During the development process our engineering team works with you. Design for manufacturability guidelines can improve performance and cost-efficiency.

Prototype development services are provided prior to full production commitment. You may check fit, form and function before you go into volume manufacturing.

Standard shot blasting is not the only option for surface treatment. We can anodise, powder coat or apply a speciality finish dependent on your environmental needs.

Applications in Radar and Defense Systems

The product provides stable mounting foundations for sensitive electronic equipment. Vibration damping characteristics of aluminum alloy protect precision components.

Your radar power supply systems require reliable structural support in challenging environments. Our casting process creates components that withstand mechanical stress and temperature variations.

Weight distribution across the 495kg structure ensures balanced load transfer. Mounting interface geometry accommodates standard fastening systems.

Global Supply Chain Integration

We maintain wooden box packaging standards suitable for international shipping. Your components arrive protected against transit damage.

Export documentation support streamlines customs clearance processes. Our experience serving US, European, and Japanese markets facilitates smooth cross-border transactions.

Lead time predictability helps you maintain production schedules. Customer feedback consistently highlights our on-time delivery performance.

FAQ

Q: What is the minimum order quantity for custom product designs?

A: Our standard MOQ is approximately 100 pieces. This threshold balances mold development costs with production efficiency for customized projects.

Q: How long does it take to receive my first order?

A: Complete lead time spans 20-30 working days after order confirmation. This includes mold preparation (15-25 days) and batch production (7-20 days). Rush service may be available for urgent requirements.

Q: Can you manufacture connecting plates from materials other than A356-T6?

A: Yes. Our foundry processes various aluminum alloys based on your mechanical property requirements. We also offer gravity casting and low-pressure casting for different material specifications.

Q: Do you provide material certification and inspection reports?

A: Absolutely. Each shipment includes material certificates and dimensional inspection reports. Third-party testing services can be arranged upon request.

Q: What file formats do you accept for custom designs?

A: We work with standard CAD formats including STEP, IGES, DWG, and PDF drawings. Our engineering team can also develop designs from concept sketches with your technical input.

Contact Us for Your Cast Connecting Plate Requirements

Ready to discuss your Cast Connecting Plate needs? Reach out to steve.zhou@263.net today to start your project.
