Cast Iron Compression Flange

Cast Iron Compression Flange – Precision Engineered for High-Voltage Power Systems

Shaanxi Rongbao Machinery Electronics Co., LTD. specializes in manufacturing Cast Iron Compression Flange components for high-voltage transmission and transformation applications. Utilizing advanced low-pressure casting technology and premium A356 aluminum alloy, these flanges deliver exceptional durability and dimensional accuracy. With a production capacity reaching 5,000 pieces per product line and certified management systems including ISO 9001:2015, ISO 14001, and ISO 45001, Rongbao provides enterprise-grade solutions backed by 14 utility model patents and recognition as a National High-Tech Enterprise. Each component undergoes precision CNC machining and shot blasting surface treatment, ensuring your equipment meets the demanding requirements of modern electrical infrastructure.

Why Choose Our Compression Flanges for Your Projects?

When it comes to the connection components of vital power transmission equipment, reliability is crucial. We combine material quality with manufacturing precision to produce our compression flanges.

A356 aluminium alloy gives the best compromise between strength and resistance to corrosion. This material choice guarantees long term performance in harsh electrical conditions. Shot blasting surface treatment is a uniform clean finish that improves durability.

Components made by low pressure casting technology have better density than that made by traditional method. This procedure reduces the internal flaws and maintains the mechanical characteristics uniformly in the flange construction.

CNC machining assures dimensional accuracy to close tolerances. First-time fit components save you installation time and expenses, and improve your assembly operations.

Technical Specifications

Manufacturing Excellence Behind Every Component

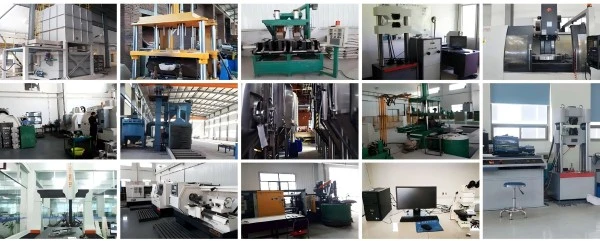

We have an integrated production site with several manufacturing processes under one roof. Vertical integration gives you supply chain advantages that fragmented providers cannot match.

Low pressure casting is the basis of our flange production. Molten aluminium is poured into permanent moulds at controlled pressures ranging from 2 to 15 psi. The smooth filling decreases turbulence and gas entrapment and results in denser castings with fewer internal voids.

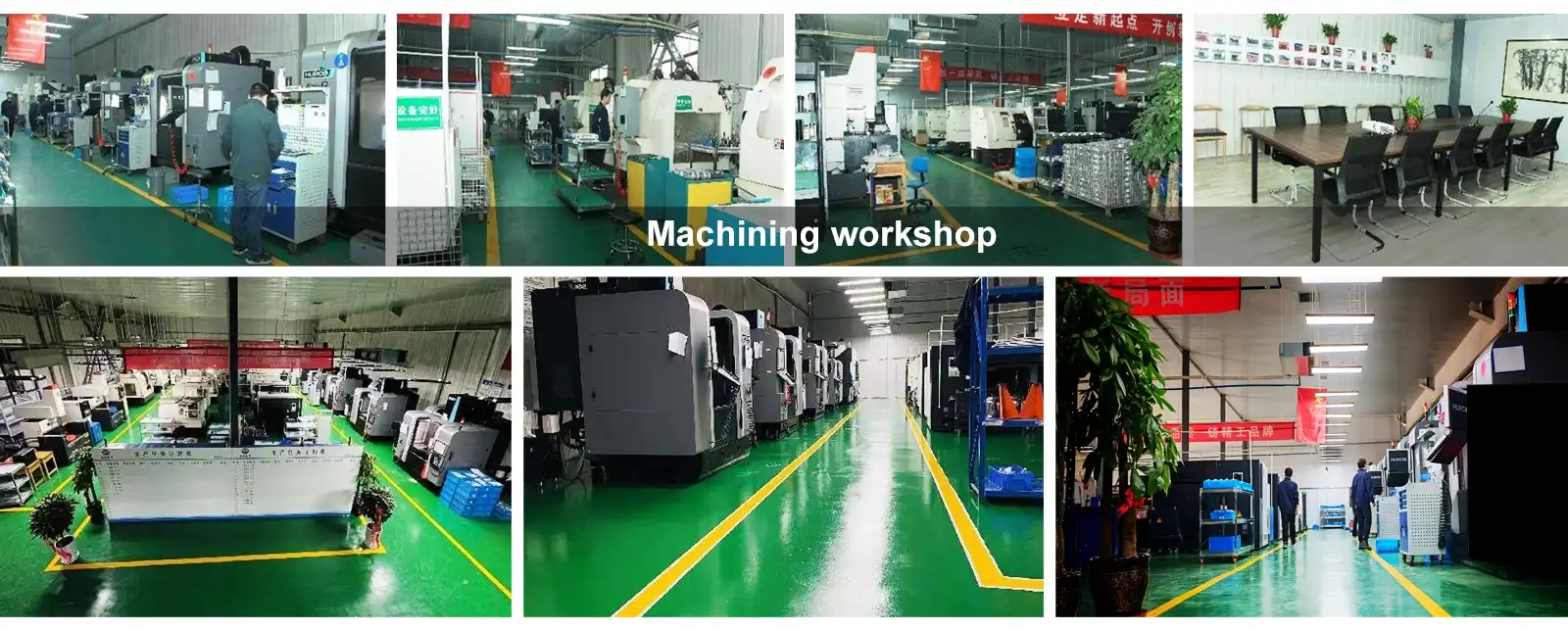

After casting each product is transferred to our precision machining center. Modern CNC machinery will produce complex geometries with repeatability. Special attention is paid to critical mounting surfaces for effective sealing and load distribution.

The surface preparation is completed by the shot-blasting process. High velocity abrasive medium eliminates scaling and gives a consistent texture. If you are to apply further coating for certain environmental conditions, this procedure will enhance paint adhesion.

Customization Options to Match Your Requirements

Each power transmission project has its own set of engineering obstacles. We offer OEM and ODM services tailored to your individual application demands.

Technical drawings, 3D CAD models or comprehensive specifications are available. Our engineering team will examine your needs and suggest the best manufacturing practices. We can accept dimensional variances, specific mounting hole patterns, and unusual material needs.

Prototype development usually takes 15-25 days for mould making. After your approval of the sample, the batch manufacturing is done within 7-20 days depending on order amount. Normal production lead times are typically 20-30 working days from order confirmation to shipment.

Our flexible MOQ of around 100 pieces is great for both test projects and large-scale manufacturing runs. This way you can control inventories but still have access to custom-engineered components.

Global Quality Standards You Can Trust

We are proud to be internationally certified for our commitment to quality and responsible manufacturing. The ISO 9001:2015 accreditation ensures our quality management system meets international standards. All processes from material receiving to final inspection are in accordance with specified protocols.

Our environmental management processes are reflected in our ISO 14001 certification. We track energy use, waste produced and emissions, to reduce the impact of our manufacturing. We are ISO 45001 certified to provide safe working conditions across all our facilities.

About 70% of our manufacturing is shipped to customers in the United States, Europe, Japan and other overseas markets. This global reach is a testament to our ability to meet varied technical standards and business needs.

Applications Where Our Flanges Excel

Cast Iron Compression Flange components are important in electrical infrastructure. These flanges are used for high-voltage transformer installations to establish safe electrical and mechanical connections.

Compression flanges are used to unite modular elements of gearbox line equipment while maintaining structural integrity. The construction is lightweight aluminium so as to lower the overall system weight but not the strength.

These flanges are used in switchgear assemblies as mounting interfaces between voltage sections. Accurate measurements assure that the busbar connectors and supporting elements are properly positioned.

The A356 alloy offers corrosion resistance that is beneficial for industrial power distribution systems. These flanges perform to specification throughout long service periods even in severe environmental conditions.

FAQ

Q: What materials can you work with besides A356 aluminum alloy?

A: While this product uses A356 for its optimal strength-to-weight ratio and casting characteristics, our facility processes multiple aluminum alloys. We can discuss alternative materials if your application requires different mechanical properties or thermal performance.

Q: How do you ensure dimensional accuracy across production runs?

A: Our quality control process includes first-article inspection, in-process measurements, and final dimensional verification using calibrated CMM equipment. Statistical process control monitors critical dimensions throughout each production batch.

Q: Can you handle rush orders for urgent projects?

A: Production schedules sometimes accommodate expedited timelines depending on current capacity. Contact our team to discuss your deadline requirements. We'll evaluate feasibility and provide realistic delivery commitments.

Q: What testing documentation comes with each order?

A: Standard shipments include material certificates and dimensional inspection reports. If you need additional testing such as mechanical property verification or non-destructive examination, specify these requirements during order placement.

Q: Do you provide design assistance for custom applications?

A: Our engineering team offers technical consultation on flange design optimization. We can review your specifications and suggest modifications that improve manufacturability while maintaining performance requirements.

Contact Us for Your Custom Flange Solutions

Ready to discuss your Cast Iron Compression Flange requirements? Email steve.zhou@263.net today to start your project.
