Is ZL104 material good for hydraulic cylinders?

In recent years, ZL104 casting cylinder aluminum alloy has been increasingly recognized as a material for hydraulic cylinders. But is it really the right choice for these essential parts? We'll explore the characteristics and uses of the casting cylinder to assess how suitable it is for building hydraulic cylinders.

Meets the "Pressure Resistance + Leak-Proof" Core Demands of Hydraulic Cylinders

Superior Strength-to-Weight Ratio

ZL104, an aluminum-copper alloy, is distinguished by its impressive combination of high strength and low weight. Two essential criteria must be met by this special mix for hydraulic cylinders: it must endure high pressures and ensure a leak-proof seal.

The alloy's tensile strength typically ranges from 380-400 MPa, rivaling some steel grades while weighing only about one-third as much. This strength allows ZL104 cylinders to handle operating pressures up to 35 MPa (5000 psi) in many applications - more than sufficient for a wide range of hydraulic systems.

Excellent Pressure Tightness

ZL104's microstructure plays a crucial role in its effectiveness for hydraulic applications, in addition to its raw strength. Thanks to its fine grain structure and low porosity, the alloy boasts outstanding pressure tightness, which is essential for stopping leaks in hydraulic systems. This trait is especially important in high-pressure situations where small leaks can cause major performance problems or safety risks.

Corrosion Resistance for Long-Term Reliability

In difficult conditions, hydraulic fluids have the potential to be corrosive. The natural corrosion resistance of ZL104 casting cylinder aids in preserving the integrity of cylinder walls and sealing surfaces as time passes. Thanks to this resistance, it has a longer service life and requires less maintenance than some other materials.

Lightweight Advantage Improves Hydraulic System Efficiency

Reduced Inertia for Faster Response Times

ZL104's minimal weight provides considerable advantages for dynamic hydraulic applications. Because this alloy allows for the production of cylinders with lower inertia, it enables moving parts to accelerate and decelerate more quickly. This leads to improved system responsiveness, which is particularly advantageous for applications requiring precise control or rapid cycling.

Energy Savings in Mobile Equipment

For mobile hydraulic equipment, every kilogram matters. ZL104 cylinders can improve fuel efficiency and increase the payload capacity by helping to reduce overall weight. Sectors such as aerospace or automotive, where weight is crucial, can see significant reductions in operational expenses over the equipment's lifetime thanks to this advantage.

Thermal Management Benefits

Aluminum alloys like ZL104 casting cylinder have excellent thermal conductivity - typically 3-5 times higher than steel. Thanks to this feature, hydraulic cylinders can dissipate heat more efficiently, which could mean that some applications don't need auxiliary cooling systems at all. Enhancing thermal management can help prolong fluid life and achieve a more stable system performance.

Customizability Adapts to Diverse Hydraulic Cylinder Designs

Versatile Manufacturing Processes

ZL104 can be made using different manufacturing methods, including low-pressure die casting, gravity casting, and precision CNC machining. Thanks to these varied approaches, it's possible to create complex cylindrical shapes and detailed internal structures with materials that would be difficult or expensive to achieve otherwise. ZL104's ability to adapt makes it perfect for fulfilling the design specifications of different hydraulic cylinder applications.Improving thermal management is crucial for extending fluid life and ensuring stable system performance.

Tailored Surface Treatments

Surface treatments like hard anodizing and electroless nickel plating can be applied to ZL104 to significantly enhance its performance. These techniques improve the alloy's durability and lifespan by increasing surface hardness and wear resistance. Moreover, due to their outstanding corrosion protection, ZL104 cylinders can operate reliably in harsh conditions, including those with high moisture or corrosive substances.

Integration of Additional Functions

ZL104's great machinability means that we can add extra features directly to the hydraulic cylinder body. This includes elements like mounting points, sensor ports, and fluid passages, which can all be incorporated without requiring separate components. A more compact and efficient hydraulic system is achieved by minimizing manufacturing complexity and simplifying the overall system design.

For building hydraulic cylinders, especially in scenarios where reducing weight and improving efficiency are key goals, ZL104 casting cylinder aluminum alloy is an excellent choice. Because of its strength, resistance to corrosion, and ease of manufacturing, it is suitable for a variety of hydraulic systems.

However, it's important to note that material selection should always be based on the specific requirements of each application. While ZL104 excels in many areas, traditional materials like steel or iron may still be preferable in extremely high-pressure systems or where maximum abrasion resistance is required.

For design engineers and purchasing managers considering ZL104 for their hydraulic cylinder needs, careful evaluation of operating conditions, performance requirements, and long-term cost considerations is essential. When properly applied, ZL104 can contribute to lighter, more efficient, and highly customizable hydraulic systems across various industries.

ZL104 Casting Cylinder Supplier: Rongbao Enterprise

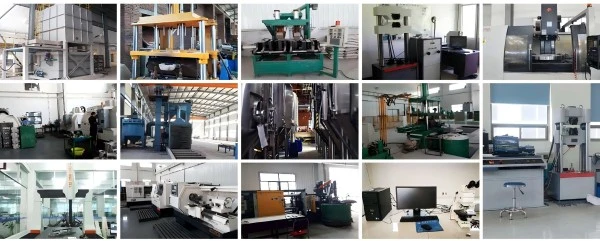

To discover the advantages of ZL104 for your hydraulic cylinder needs, Rongbao Enterprise provides skilled aluminum alloy casting and precision processing services. With a focus on quality and customization, Rongbao can help you determine if ZL104 is the right fit for your specific needs.

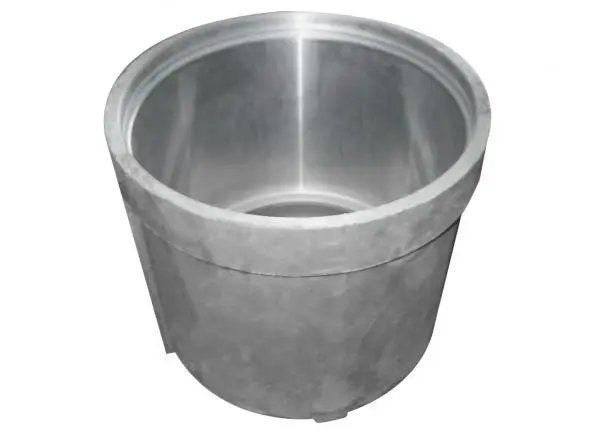

Key product details for Rongbao's ZL104 casting cylinders include:

• Application: Lift lifting control cylinder
• Manufacturing Process: Low pressure casting
• Quality Assurance: ISO9001:2015, ISO14001, ISO45001 certified
• Additional Processing: CNC machining available
• Surface Treatment: Shot blasting for improved finish
• Customization: OEM/ODM services offered

Ready to explore how ZL104 casting cylinders can enhance your hydraulic systems? Contact Rongbao Enterprise today to discuss your project requirements:

Email: steve.zhou@263.net or zhouyi@rongbaocasting.com

Take the next step in optimizing your hydraulic cylinder design with ZL104 and Rongbao's expertise!
