Custom Sand Casting Solutions For Complex Internal Channels

When fire pump components fail a hydrostatic pressure test, the root cause is almost always traced back to casting defects buried deep inside the part—invisible until it is too late. Custom sand casting addresses this problem directly. By building accurate sand cores that define internal passages before molten metal ever enters the mold, this process produces pump housings, impellers, valve bodies, and manifolds with verified internal integrity. For procurement engineers sourcing fire pump accessories, understanding how modern sand casting works is the first step toward eliminating costly rejects and delivery delays.

Custom Sand Casting for Complex Internal Channels

Even though sand casting has been improved over hundreds of years, the physics behind it are still very simple: molten metal flows into a shaped hole in bonded sand, and the solidified part keeps all of the cavity's shapes, even the ones inside the hole. The sand core is what really makes this method work for internal channels that are complicated. Cores are separate, exactly shaped pieces that are put into the mold before the concrete is poured. They are in the area that will become an open passageway when the metal around them hardens.

Why ZL101A Aluminum Alloy Suits Fire Pump Parts

The choice of material directly affects how well a casting holds up against pressure cycles. ZL101A is a hypoeutectic Al-Si-Mg alloy that is standardized under Chinese GB/T 1173. It has a density of about 2.68 g/cm³, a tensile strength of about 205 MPa after T5 aging, and great resistance to corrosion in water-contact environments. Because of these qualities, it is a good choice for fire pump accessories—parts that need to withstand repeated surge pressures without microcracks spreading. A 5 kg casting in ZL101A has a lot less dead weight than a cast-iron version. This means that the total mass of the pump system is lower while the structure stays strong.

Challenges and Solutions in Casting Complex Internal Channels

It takes a lot of technical skill to make tight internal pathways. The custom sand casting cores that make up those tunnels have to be able to handle the heat and hydraulic pressure of the metal that is going in without moving, cracking, or letting gas out. When they fail, porosity, inclusions, or dimensional drift happen. These are flaws that make fire pump casts fail the hydraulic test that is needed before they can be certified nationally.

Three technical changes have made a big difference in the industry as a whole:

• Advanced cold-box binder systems use amine gas to fix cores at room temperature, providing the materials with good dimensional stability and low gas production. The American Foundry Society has published data that shows that when process factors are tightly controlled, cold-box binders can cut core-related porosity by up to 40% compared to oil-sand cores.
• Optimized gating and riser geometry controls the speed of the metal flow and the order in which it solidifies. When the metal shrinks, a properly placed riser fills in the empty spaces, keeping the walls of the channel thick and free of leaks.
• Real-time mold temperature monitoring during gravity-assisted pouring finds thermal problems before they become lasting flaws in the casting wall.

These interventions don't work on their own; they work together. If your supplier handles all three at the same time, they are much less likely to ship a batch with problems that only show up when you validate it under hydrostatic pressure.

Advanced Custom Sand Casting Process Tailored for Complex Internal Channels

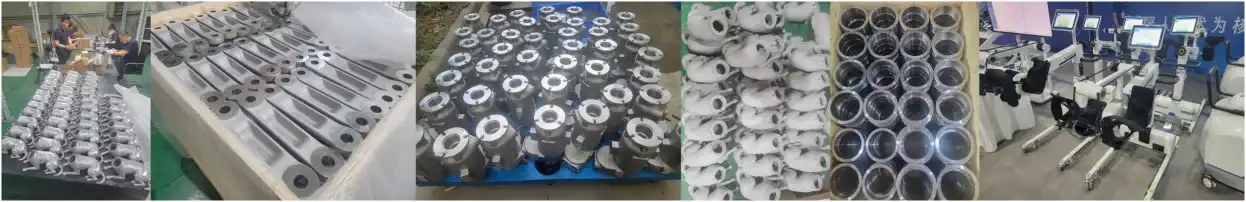

Precision starts before the sand is even packed down. At Rongbao Enterprise's Xi'an plant, making molds follows a written process order that is linked to ISO 9001:2015 controls. Each step can be tracked from the time the raw materials are received to the time the finished product is shipped.

Core Making and Mold Preparation

Cores for fire pump channels are made on special core makers that are set up to always use the same shot pressure and binder-to-sand ratios. Each core set's dimensions are checked using CMM fixtures that are based on the part drawing instead of the operator's judgment. This step must be taken: if the core is even 0.3 mm off from what it should be, it changes the wall thickness of an internal passageway enough to cause stress to build up during pressure cycles.

Post-Processing: Heat Treatment and CNC Machining

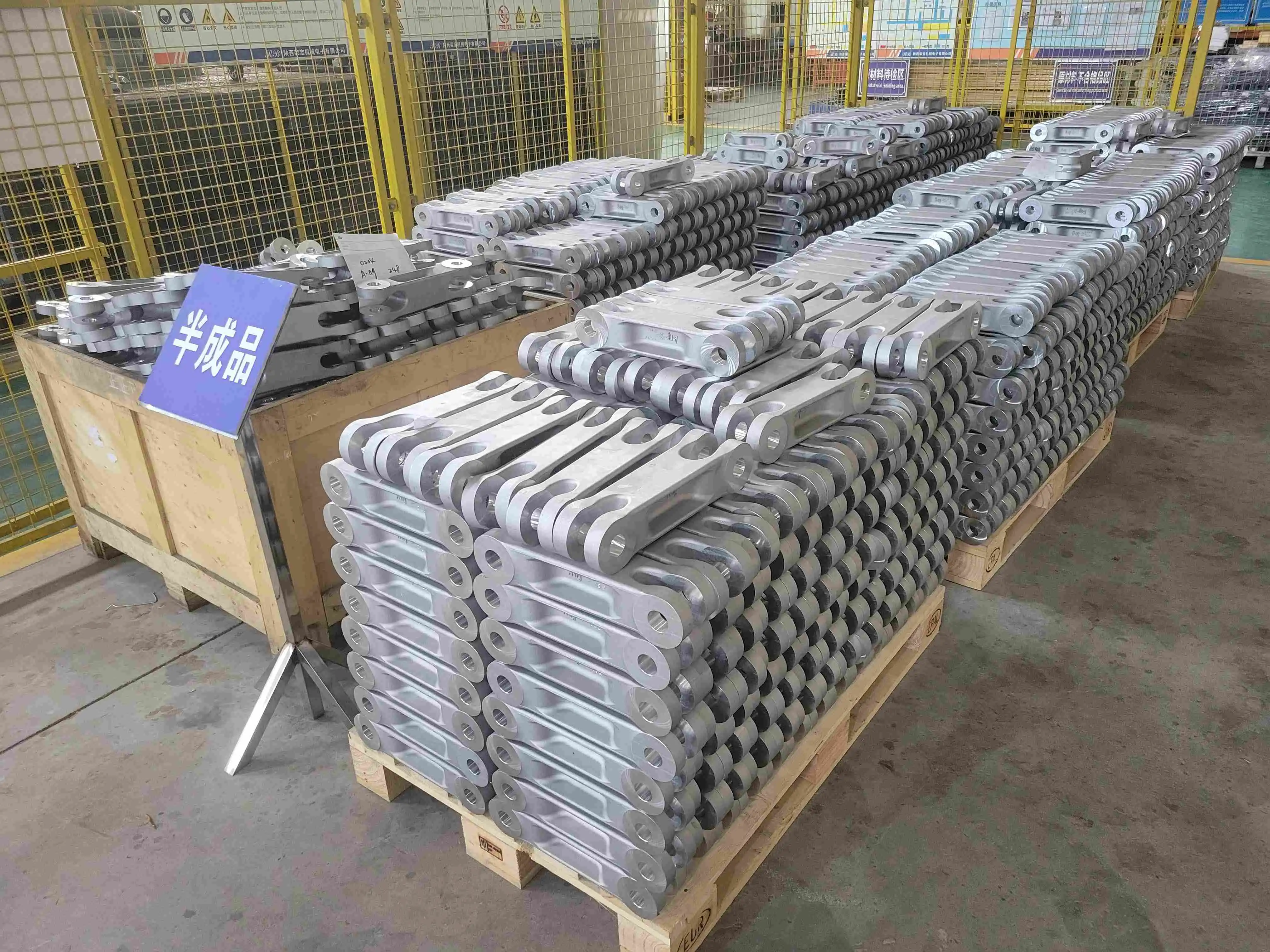

Gravity-cast ZL101A parts get a T5 age process after shakeout. This gets rid of any remaining stress and evens out the hardness across the section. Then, CNC machining centers are used to finish-machine the important sealing faces and hole sizes to the exact specifications needed by assembly lines. After cutting, shot blasting is used to remove surface rust and leave a smooth, matte finish that makes inspection easier.

Non-Destructive Testing and Certification Compliance

Before any batch ships, an X-ray or ultrasonic inspection is used to make sure that the internal channels are still solid. The three-system compliance package that many fire equipment manufacturers list as a must-have for vendors is held by Rongbao Enterprise: ISO 9001:2015, ISO 14001, and ISO 45001. Each package comes with a full inspection record in the wooden boxes that are used to protect parts that weigh 5 kg or more.

Comparing Sand Casting with Alternative Casting Methods

A lot of the time, procurement engineers want to know if die casting or investment casting would make internal pathways with tighter standards for less money. The answer varies on the yearly amount and the difficulty of the geometry.

When high-pressure die casting is used more than 50,000 times a year on the same part number, the large investment in tools pays off quickly. Investment casting gives small, complicated parts a great surface finish, but it costs more per piece for parts that weigh more than 5 kg. Neither way works as well with big cores as sand casting does because the core has to be able to handle input pressures that are much higher than what gravity casting requires.

Sand casting, especially custom sand casting, is still the best way to make medium-batch fire pump parts because it keeps tooling costs low, core geometry can be changed without having to throw away a multi-cavity die, and production batches of 5,000 pieces are well within the norm. Sand mold tooling's versatility is a real competitive advantage for OEM and ODM programs where part geometry changes from one generation of products to the next.

Selecting the Right Custom Sand Casting Partner

It is important to be thorough when evaluating suppliers for safety-critical molds. Before committing to a new foundry, procurement teams with a lot of experience look at these main factors:

• Three-system ISO certification (ISO 9001, ISO 14001, and ISO 45001) proves that management of quality, the environment, and workplace health are checked by a recognized outside group, not just by the company itself.
• Multi-process capability under one roof, like gravity casting, CNC cutting, and surface treatment, gets rid of the organizational risk that comes with having supply chains with multiple vendors.
• Documented sampling protocol: before mass production starts, the seller should give dimensional reports and NDT results for first-article samples.
• Batch consistency data: you can ask for Cpk values or statistical process control charts from recent production runs on parts that are similar.
• Transparent lead time commitments with checkpoints at key points, not just a promise of delivery at the time of the order.

These criteria collectively filter out foundries that can produce an acceptable prototype but cannot sustain that quality for 5,000-piece production runs. Consistency between batches is the real differentiator, which can only be achieved through strict process control.

Conclusion

Not only do some fire pump parts need to have complex internal channels, but all of them do. Pump housings, impellers, and valve assemblies all have to meet standard geometry requirements before they can be shipped. Using ZL101A aluminum for custom sand casting, along with confirmed core making, CNC finish machining, and documented NDT, gives these parts the internal integrity they need. When you choose a foundry that has ISO triple certification and the ability to do more than one process, casting buying goes from being a regular source of problems for the assembly line to a stable, repeatable supply relationship.

FAQ

What sand types work best for casting parts with narrow internal passages?

For narrow cores, cold-box phenolic urethane sand gives the best physical stability. Furan no-bake systems work well with medium- to big cores that need more time to work. Both methods produce less gas than regular green sand, which lowers the risk of porosity in thin-wall internal passageways.

How do you minimize internal defects in gravity-cast aluminum parts?

It is very important to control the filling temperature, the mold fill rate, and the riser volume all at the same time. Simulation software like MAGMASOFT or ProCAST models how solids will behave before the first mold is made. This lets you find areas that are likely to shrink so you can move risers before they get damaged.

What is a realistic lead time for a 5,000-piece order of fire pump castings?

It usually takes six to nine weeks for this many gravity-cast aluminum parts to be delivered from the time the accepted drawing is approved to the time the last batch is delivered. This time includes finalizing the tools, getting the first batch approved, heat treatment, CNC cutting, inspection, and shipping. When making a new product, expedited sample can cut the first-article phase down to three weeks if the tooling is simple.

Is OEM/ODM support available for fire pump-specific geometries?

Yes, foundries with their own engineering teams can support full OEM and ODM programs. This includes reviewing mold designs, making sure that material specifications are met, and customizing packing for heavy cast parts.

Partner With Rongbao Enterprise for Precision Fire Pump Castings

The custom sand casting company Rongbao Enterprise has been in business for 20 years, has three ISO certifications, and can do all of its own CNC machining, surface treatment, and casting. Our ZL101A gravity casting line can make up to 5,000 pieces of fire pump parts at a time, and each batch is guaranteed to be the same. You can email our engineering team at steve.zhou@263.net or zhouyi@rongbaocasting.com to get a quote, or you can go to rongbaocasting.com.
